Moeller M22-D-W Flush Momentary Pushbutton White

Part Code: 216592

Stock Code: 1591-5979

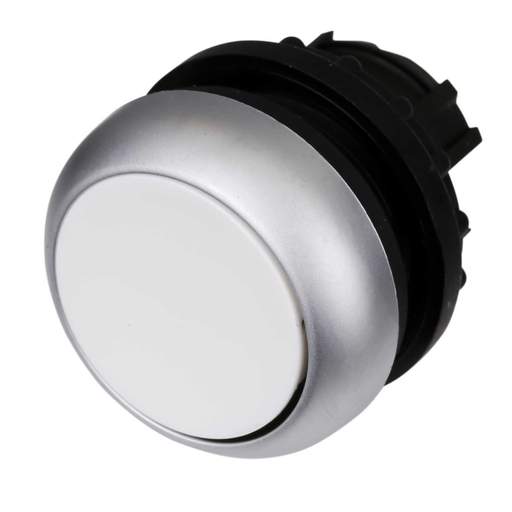

Moeller M22-D-W Flush Momentary Pushbutton White

Part Code: 216592

Stock Code: 1591-5979

Delivery

7 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • M22 series offers a wide range of attractive, ergonomically designed illuminated and non-illuminated pushbuttons, selector switches, key switches, push-pulls, alternate action and twist-to-release operators
  • Quick and easy assembly
  • Flush fitting
  • RMQ-Titan (drilling dimensions 22.5mm)
  • M22 offers USB/RJ45 connections
  • Corrosion resistant body

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Colour
White
Cut Out
22mm
Diameter
29.7mm
Dimensions
(Dia)29.7 mm
Finish
Chrome Front Ring
Guarantee
1 Year
IP Rating
IP67
Material
Plastic Including Front Ring
Maximum Operating Temperature
70°C
Mechanical Shock Resistance
30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
Minimum Operating Temperature
-25°C
Mounting
Panel
Operation Type
Momentary
Packaging Types
Each
Product Range
RMQ-Titan Pushbuttons
Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
Storage Temperature Range
-40 - 80°C
Unspsc V18
39122216
Weight
0.06kg
