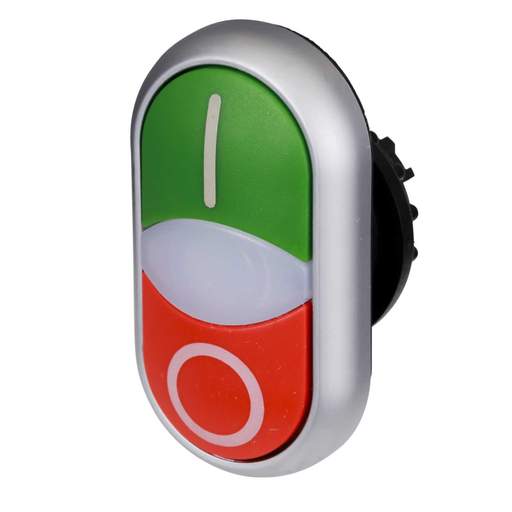

Moeller M22-DDl-GR-X1/X0 Flush Momentary Start / Stop Pushbutton
Part Code: 216700
Stock Code: 1591-5622
Moeller M22-DDl-GR-X1/X0 Flush Momentary Start / Stop Pushbutton
Part Code: 216700
Stock Code: 1591-5622
Features
- Pushbutton only with green and red buttons
- Momentary switches
- Plastic front ring
- RMQ-Titan range
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Green/Red
- Cut Out
- 22mm
- Depth
- 32.2mm
- Dimensions
- (H)54.7 mm x (W)29.7 mm x (D)32.2 mm
- Finish
- Chrome Front Ring
- Guarantee
- 1 Year
- Height
- 54.7mm
- IP Rating
- IP66
- Legend
- I and O
- Lens Colour
- White
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Operation Type
- Momentary
- Packaging Types
- Each
- Product Range
- RMQ Titan
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
- Storage Temperature Range
- -40 - 80°C
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.02200kg
- Width
- 29.7mm
