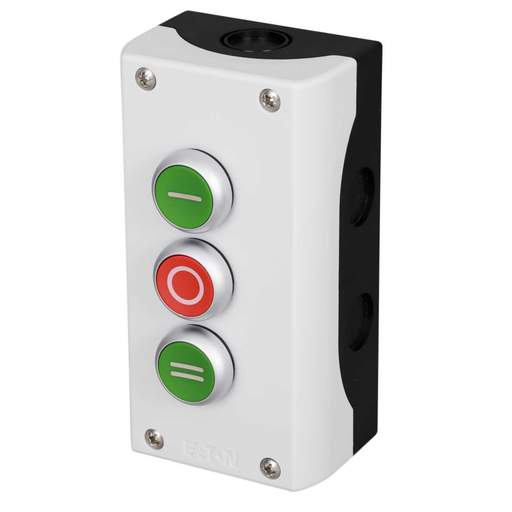

Moeller M22-I3-M1 3 Way Pushbutton Station IP67
Part Code: 216532
Stock Code: 1591-6078
Moeller M22-I3-M1 3 Way Pushbutton Station IP67
Part Code: 216532
Stock Code: 1591-6078
Features
- Snap fitting modular range of 22.5mm control devices
- Up to six clip-together contact elements per actuator
- Stayput actuators convert with simple adaptor to spring return
- Complete unit
- Without indicator light
- Momentary function
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Cable Entry
- Bottom 2 x 20mm, Sides 2 x 20mm, 2 x 20/25mm
- Colour
- Green/Red
- Contact Configuration
- 3 NO + 3 NC
- Depth
- 56mm
- Dimensions
- (H)80 mm x (W)153 mm x (D)56 mm
- Guarantee
- 1 Year
- Height
- 80mm
- IP Rating
- IP67
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Number of Ways
- 2
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- RMQ-Titan
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
- Unspsc V18
- 39121565
- Unspsc V24
- 39121565
- Weight
- 0.26800kg
- Width
- 153mm
