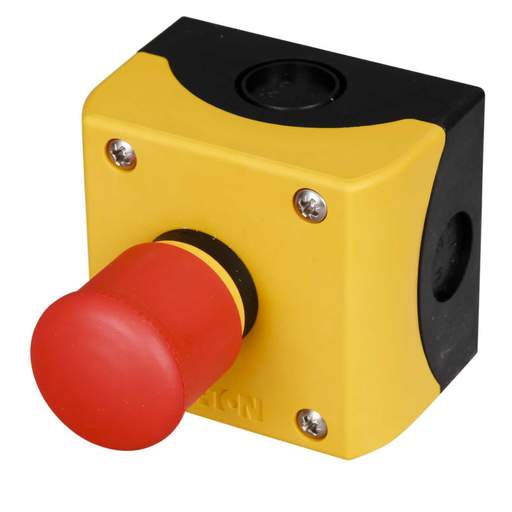

Moeller M22-PV/KC11/IY Emergency Stop Pull Release Pushbutton Station IP66
Part Code: 216525
Stock Code: 1591-6258
Moeller M22-PV/KC11/IY Emergency Stop Pull Release Pushbutton Station IP66
Part Code: 216525
Stock Code: 1591-6258
Features
- Emergency stop button switch
- Tamper proof according to ISO 13850/EN 418
- Supplied as a complete unit enabling easy installation for world wide application
- Can also be used for emergency switching off
- 1 NO and 1 NC contact blocks
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Red/Yellow
- Contact Configuration
- 1 NO + 1 NC
- Cut Out
- 22mm
- Diameter
- 29.7mm
- Dimensions
- (Dia)29.7 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Material
- Plastic Housing
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 50g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Operation Type
- Pull Release
- Packaging Types
- Each
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
- Unspsc V18
- 39121565
- Unspsc V24
- 39121565
- Weight
- 0.17000kg
