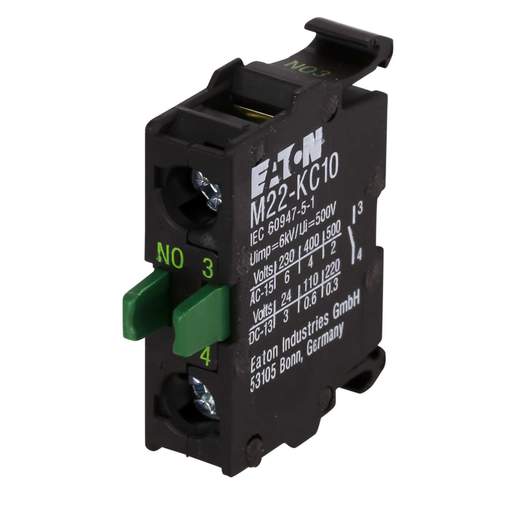

Moeller M22-KC10 Base Fixing Contact Block 1 NO
Part Code: 216380
Stock Code: 1591-6111
Moeller M22-KC10 Base Fixing Contact Block 1 NO
Part Code: 216380
Stock Code: 1591-6111
Features
- For mounting behind, and separately from, the actuator to allow separate removal of panel, leaving wiring in place
- Fixing adapter not required
- AC15 current rating: 6A @ 230V
- DC15 current rating: 3A @ 24V
- Screw terminals
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Contact Configuration
- 1 NO
- Guarantee
- 1 Year
- IP Rating
- IP20
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Mounting
- Back Mounting
- Packaging Types
- Each
- Product Range
- RMQ-Titan
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
- Storage Temperature Range
- -40 - 80°C
- Suitable For
- RMQ-Titan Pushbuttons and Switches
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Weight
- 0.06000kg
