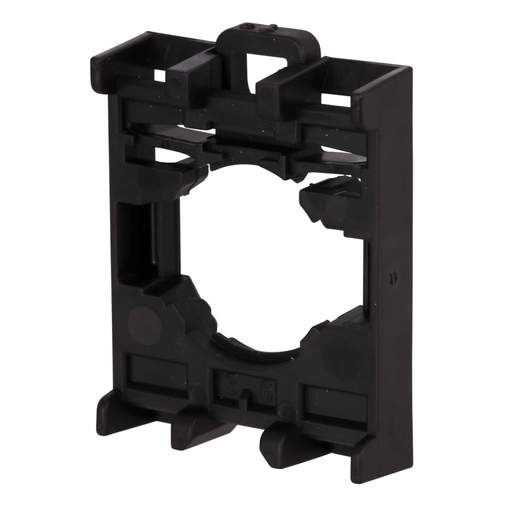

Moeller M22-A Mounting Adaptor
Part Code: 216374
Stock Code: 1591-5490
Moeller M22-A Mounting Adaptor
Part Code: 216374
Stock Code: 1591-5490
Features
- Mounting adaptor
- Single unit
- Mounting clamp [front mounting] for 3 contact LED elements
- Front fixing
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Dimensions
- (H)40.8 mm x (W)30 mm
- Guarantee
- 1 Year
- Height
- 40.8mm
- IP Rating
- IP20
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Packaging Types
- Each
- Product Range
- RMQ-Titan Range
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
- Suitable For
- RMQ-Titan Range of Pushbuttons and Switches
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Weight
- 0.03000kg
- Width
- 30mm
