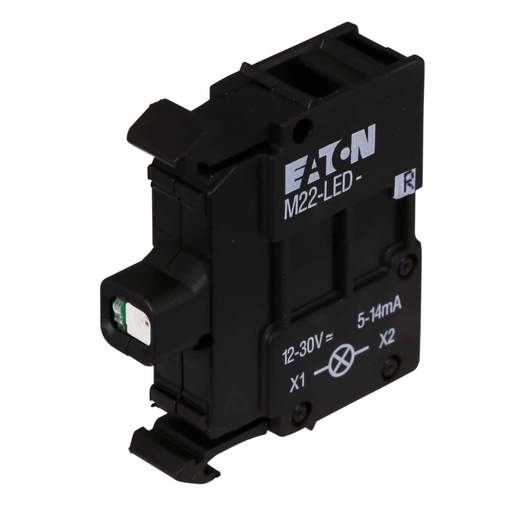

Moeller M22-LED-R 12-30V LED Indicator Lamp Red
Part Code: 216558
Stock Code: 1591-6195
Moeller M22-LED-R 12-30V LED Indicator Lamp Red
Part Code: 216558
Stock Code: 1591-6195
Features
- Rear or front fixing (rear can be mounted separate from the actuator and fixing adaptor is not therefore required)
- Choice of voltages
- LED elements
- Single unit
- Front fixing
- Screw terminals
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Red
- Cut Out
- 22.5mm
- Guarantee
- 1 Year
- IP Rating
- IP20
- Lens Colour
- Red
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Packaging Types
- Each
- Product Range
- RMQ-Titan
- Standards
- IEC/EN 04937-5] UL 541] CSA-C22.2 No. 83-45] CSA-C22.2 No. 93-98] CE Marking
- Storage Temperature Range
- -40 - 80°C
- Unspsc V18
- 39121534
- Unspsc V24
- 39121534
- Voltage Range
- 12 - 30V AC / DC
- Voltage Rating
- 24V
- Weight
- 0.09500kg
