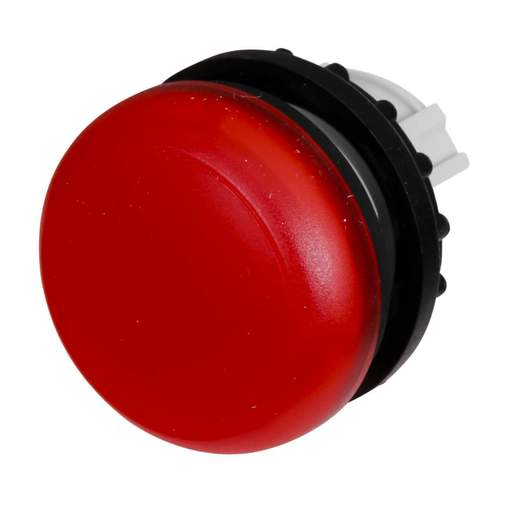

Moeller M22-L-R Indicator Light Assembly Red

Part Code: 216772

Stock Code: 1591-6222

Moeller M22-L-R Indicator Light Assembly Red

Part Code: 216772

Stock Code: 1591-6222

Delivery

11 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • The M22 series offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push buttons, selector switches, key switches, push-pulls, alternate action and twist-to-release operators
  • Quick and easy assembly
  • Offers USB/RJ45 connections
  • Corrosion resistant body
  • Single unit
  • Flush

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Colour
Red
Cut Out
22mm
Depth
20.5mm
Diameter
29.7mm
Dimensions
(Dia)29.7 mm x (D)20.5 mm
Guarantee
1 Year
IP Rating
IP67
Lens Colour
Red
Maximum Operating Temperature
70°C
Mechanical Shock Resistance
30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
Minimum Operating Temperature
-25°C
Packaging Types
Each
Product Range
RMQ-Titan
Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
Unspsc V18
39121534
Weight
0.017kg
