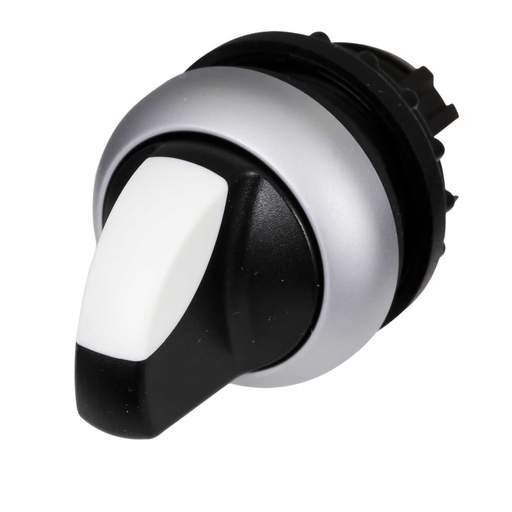

Moeller M22-WRK3 3 Position Thumb Grip Selector Switch
Part Code: 216872
Stock Code: 1591-7152
Moeller M22-WRK3 3 Position Thumb Grip Selector Switch
Part Code: 216872
Stock Code: 1591-7152
Features
- Professional range of selector switch actuators from the M22 series. The selector switches actuators have a momentary action
- Selector switch with 3 positions
- Titanium front ring
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Black/Silver
- Cut Out
- 22.5mm
- Diameter
- 29.7mm
- Dimensions
- (Dia)29.7 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Material
- Front Ring Plastic
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Number of Positions
- 3
- Packaging Types
- Each
- Product Range
- RMQ-Titan
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
- Storage Temperature Range
- -40 - 80°C
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Weight
- 0.09500kg
