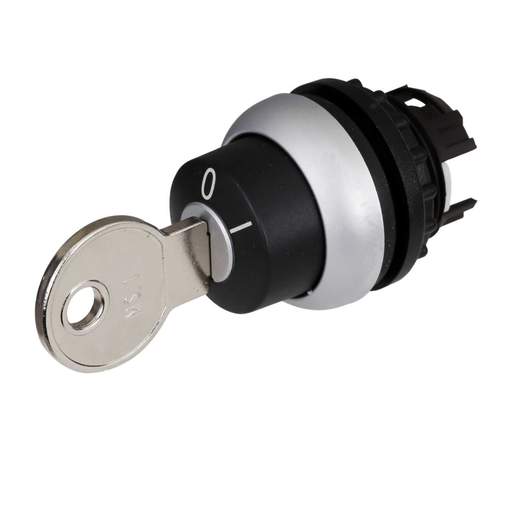

Moeller M22-WRS Key Operated 2 Position Switch Only
Part Code: 216887
Stock Code: 1591-7197
Moeller M22-WRS Key Operated 2 Position Switch Only
Part Code: 216887
Stock Code: 1591-7197
Features
- Complete selector switch unit from the RMQ Titan 22mm series is designed to simplify the process of buying individual components
- Mechanical lifespan greater than 1,000,000 operations
- Supplied with 1 key
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Black
- Cut Out
- 22.5mm
- Diameter
- 29.7mm
- Dimensions
- (Dia)29.7 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Maximum Operating Temperature
- 70°C
- Mechanical Shock Resistance
- 30g Shock duration 11ms Sinusoidal according to IEC 60068-2-27
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Number of Positions
- 2
- Operation Type
- Key Operated
- Packaging Types
- Each
- Product Range
- RMQ-Titan
- Standards
- IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE Marking
- Unspsc V18
- 39122224
- Unspsc V24
- 39122224
- Weight
- 0.02000kg
