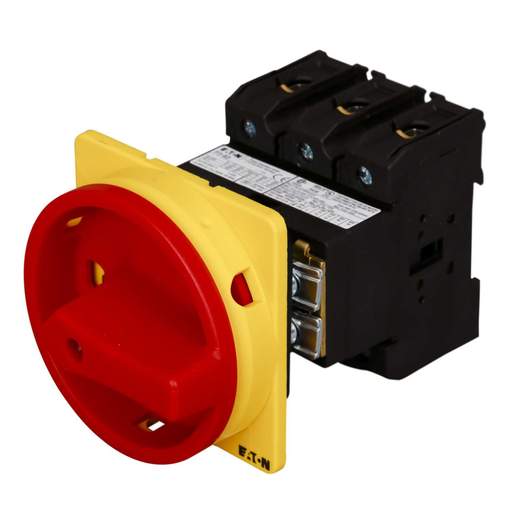

Moeller P3-63/V/SVB 63A 3P Rear Mounting Isolator Switch IP65

Part Code: 48218

Stock Code: 0093-2341

Moeller P3-63/V/SVB 63A 3P Rear Mounting Isolator Switch IP65

Part Code: 48218

Stock Code: 0093-2341

Delivery

6 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Interlocked in the ON position to prevent panel door being opened while switch is on
  • Lockable in the OFF position, with up to three padlocks
  • Emergency switching off/emergency stop function
  • Red rotary handle and yellow locking ring
  • Three- pole switches accept add-on switched neutral and auxiliary contacts
  • Built in N and PE terminals

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Colour
Black/Red/Yellow
Compliance
CSA, UL
Current Rating
63A
Frequency
50/60 Hz
Guarantee
1 Year
IP Rating
IP65
Motor Power Ratingat415 V
30kW
Mounting
Rear
Number of Poles
3 Pole
Packaging Types
Each
Product Range
Switch Disconnectors
Standards
IEC EN 60947, VDE 0660, IEC EN 60204
Unspsc V18
39122217
Voltage Rating
690V
Weight
0.27kg
