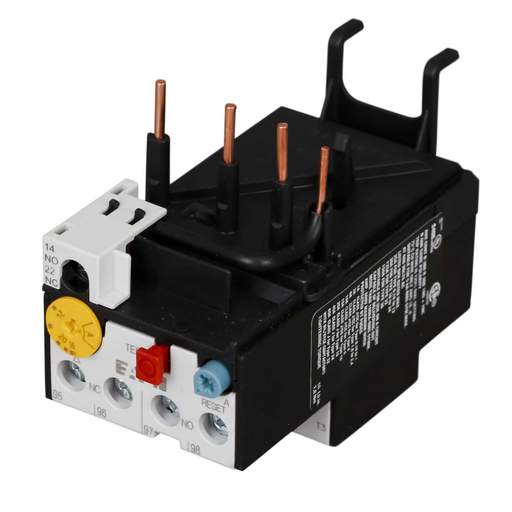

Moeller ZB32-24 16 to 24A Overload Relay
Part Code: 278453
Stock Code: 1593-1480
Moeller ZB32-24 16 to 24A Overload Relay
Part Code: 278453
Stock Code: 1593-1480
Features
- Mechanical reset
- Test/Off button
- Reset pushbutton manual/auto
- 1NO + 1 NC contact configuration
- Screw connection
- IEC 60947
- Frame C for DILM17, DILM25, DILM32 contactors
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Class Type
- Class10
- Colour
- Black/Grey
- Compliance
- CSA UL
- Depth
- 48mm
- Dimensions
- (H)83 mm x (W)45 mm x (D)48 mm
- Guarantee
- 1 Year
- Height
- 83mm
- Mounting
- Direct
- Number of Pins
- 4
- Operating Temperature Range
- -25 - 55°C
- Overload Rating
- 16 - 24A
- Packaging Types
- Each
- Product Range
- Overload Relay ZB Up To 150A
- Standards
- IEC/EN 60947, UL 60947, CSA - C22
- Suitable For
- DILM7, DILM9, DILM12, DILM15, DIULM7, DIULM9, DIULM12, SDAINLM12, SDAINLM16, SDAINLM22
- Type
- ZB32 - 24
- Unspsc V18
- 39122330
- Unspsc V24
- 39122330
- Weight
- 0.02800kg
- Width
- 45mm
