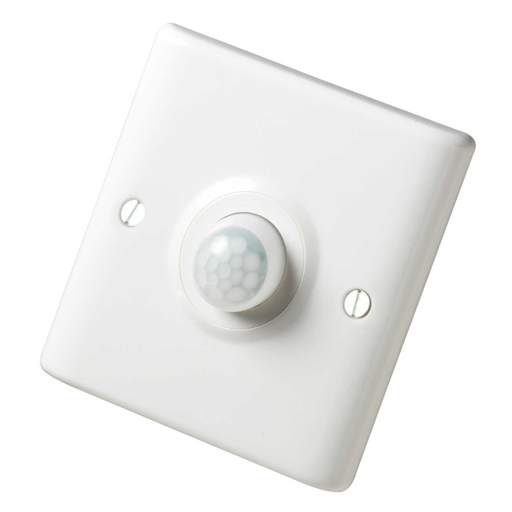

Levante 3 Wire PIR Time Delay Switch
Part Code: LEV3WPIR
Stock Code: 1865-9905
Levante 3 Wire PIR Time Delay Switch
Part Code: LEV3WPIR
Stock Code: 1865-9905
Features
- Easy to install and operate
- 10A rated regardless of load type
- Adjustable from 2 mins to 1 hour
- Red signal LED
- Override switch*
- Neutral required
- Suitable for use with 25mm BS back box
- Please note: LEVPFCC capacitor will often be required when switching certain types of loads
- *Override switch is located within the PIR module and once pressed disables the PIR function so the lights are permanently OFF, repressing the PIR module will restore the PIR to normal operation, this unit does not have a permanent ON override
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Compliance
- CE
- Current Rating
- 10A
- Depth
- 8mm
- Detection Angle
- 100°
- Detection Range
- 7m
- Dimensions
- (H)85 mm x (W)85 mm x (D)8 mm
- Guarantee
- 6 Years
- Height
- 85mm
- Lux Adjustment
- Yes
- Material
- ABS
- Mounting
- Wall
- Number of Wire Connections
- 3
- Override Switch
- Yes
- Packaging Types
- Box
- Re Trigger Function
- Yes
- Sensor
- PIR
- Standards
- BS EN 60669-2-3:2006 (Ed 4), BS EN 60669-2-1 2002 (Ed 3), BS EN 60669-1 1998 A1:1999, BS EN 60529:1992
- Suitable For
- Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
- Timer Range
- 2 - 60 mins
- Type
- PIR
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.14500kg
- Width
- 85mm
