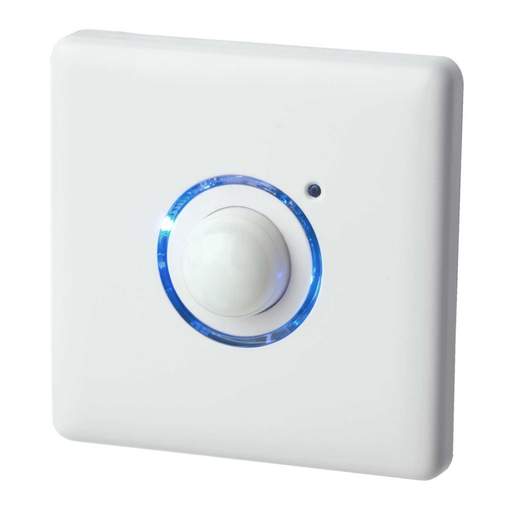

Elkay PIR Timer 3 Wire White
Part Code: 370A-1
Stock Code: 0704-0089
Elkay PIR Timer 3 Wire White
Part Code: 370A-1
Stock Code: 0704-0089
Features
- Saves cost and energy
- Easy to fit
- For loads up to 16A
- Adjustable from 2 minutes to 2 hours
- Blue locator ring
- Red signal LED
- Override switch*
- Neutral required
- Suitable for use with a 25mm BS back box
- Please note: LEVPFCC capacitor will often be required when switching certain types of loads
- *Override switch is located within the PIR module and once pressed disables the PIR function so the lights are permanently OFF, repressing the PIR module will restore the PIR to normal operation, this unit does not have a permanent ON override
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Elkay
- Cancellation Function
- Yes
- Colour
- White
- Compliance
- CE
- Current Rating
- 16A
- Depth
- 8mm
- Detection Angle
- 100°
- Detection Range
- 7m
- Dimensions
- (H)85 mm x (W)85 mm x (D)8 mm
- Guarantee
- 6 Years
- Height
- 85mm
- Lux Adjustment
- Yes
- Material
- ABS
- Mounting
- Wall
- Neon
- Yes
- Number of Wire Connections
- 3
- Override Switch
- Yes
- Packaging Types
- Pack
- Product Range
- Energy Sense
- Re Trigger Function
- Yes
- Sensor
- PIR
- Standards
- BS EN 60669-2-3:2006 (Ed 4), BS EN 60669-2-1 2002 (Ed 3), BS EN 60669-1 1998 + A1:1999, BS EN 60529:1992
- Suitable For
- Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
- Timer Range
- 2 mins - 2 hrs
- Type
- PIR
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.16800kg
- Width
- 85mm
