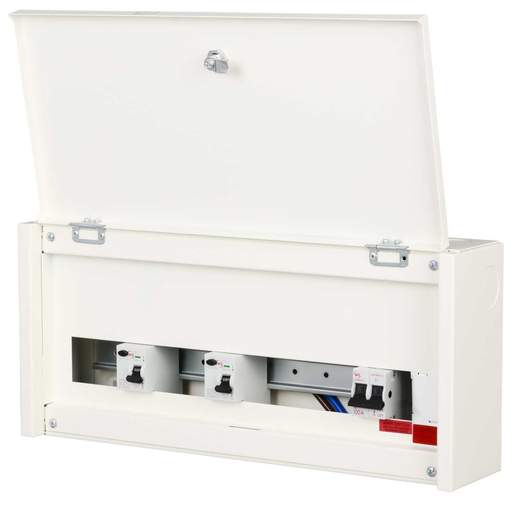

M2 16 Way Flexible Dual 80A RCD High Integrity Metal Clad Consumer Unit
Part Code: AM2XDSLV16MU
Stock Code: 2178-5341
M2 16 Way Flexible Dual 80A RCD High Integrity Metal Clad Consumer Unit
Part Code: AM2XDSLV16MU
Stock Code: 2178-5341
Features
- Supplied with 2 x 80A 30mA RCDs, 1 x 100A DP isolator and full complement of earth and neutral terminals along with marking labels, busbar and instructions
- Amendment 3 compliant
- Non-combustible enclosure
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Cable Entry
- Selection of Knockouts / Cutouts
- Compliance
- BSEN61439-3
- Current Rating
- 100A
- Depth
- 110mm
- Dimensions
- (H)220 mm x (W)489 mm x (D)110 mm
- Door Type
- Top Hinged
- Guarantee
- 10 Years
- Height
- 220mm
- IP Rating
- IP4XC
- Incoming Device
- 100A DP Isolator
- Incoming Terminal Capacity
- 35mm²
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 24
- Number of Outgoing Ways
- 16
- Packaging Types
- Each
- Product Range
- M2 Metalclad
- Rcd Rating
- 80A
- Rcd Type
- AC
- Standards
- BSEN61439-3
- Supplied With
- 2 x 80A 30mA RCDs, 1 x 100A DP isolator
- Surge Protection Fitted
- No
- Surge Protection Ready
- Yes
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 6.50000kg
- Width
- 489mm
