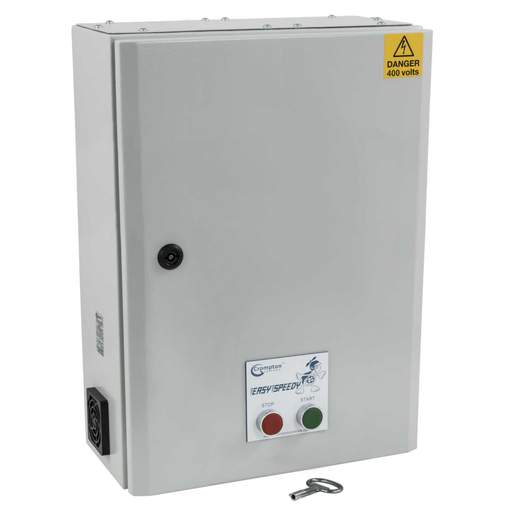

Crompton 7.5kW 400V Three Phase Variable Speed Drive
Part Code: CC3P-7.5EVSD
Stock Code: 2179-6972
Crompton 7.5kW 400V Three Phase Variable Speed Drive
Part Code: CC3P-7.5EVSD
Stock Code: 2179-6972
Features
- Enclosed inverter panel supplied ready to run
- Fitted as standard with the latest Emotron FDU and VS inverters
- Integral EMC filter and keypad/display
- Compact IP54 enclosure with ventilation fans and filters
- Mains supply and motor connection terminals
- Simple start and stop buttons
- Internally mounted energy saving potentiometer
- Note - all smaller sizes up to 1.1kW have vents, larger sizes also have a fan for heat dissipation
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Light Grey
- Current Rating
- 16.5A
- Depth
- 200mm
- Dimensions
- (H)500 mm x (W)400 mm x (D)200 mm
- Finish
- Powder Coated
- Guarantee
- 2 Years
- Height
- 500mm
- IP Rating
- IP54
- Material
- Sheet Steel
- Mounting
- Surface
- Number of Phases
- 3
- Packaging Types
- Box
- Power Rating
- 7.5kW
- Product Range
- Easy Speedy
- Suitable For
- For Controlling Three-Phase 400VAC Motors
- Unspsc V18
- 39122002
- Unspsc V24
- 39122002
- Video Url
- https://www.youtube.com/embed/aINcfroDeLw
- Voltage Rating
- 400V
- Weight
- 16.00000kg
- Width
- 400mm
