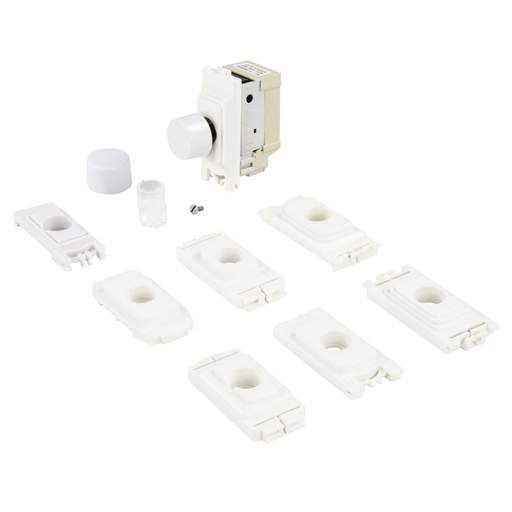

Varilight 2 Way 120W Rotary LED Grid Dimmer Module

Part Code: GJP100WMG

Stock Code: 2028-3664

Varilight 2 Way 120W Rotary LED Grid Dimmer Module

Part Code: GJP100WMG

Stock Code: 2028-3664

Delivery

90 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • V-Pro intelligent dimming technology
  • Soft start feature and intelligent overload protection
  • Adjustable minimum brightness setting and choice of driving modes
  • Create your own switch combinations
  • Suitable for most manufacturers grid plates
  • Recommended back box depth: 35mm
  • Maximum load rating: LED; 120W (Halogen; 120W, Mixed Loads; 120W) (Max. 10 lamps for all lighting types)
  • Intended applications: Domestic lighting circuits including many dimmable LEDs (1-10 LEDs)

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Varilight
Colour
White
Compliance
CE
Current Rating
0.7A
Depth
50mm
Dimensions
(H)54 mm x (W)26 mm x (D)50 mm
Guarantee
10 Years
Height
54mm
Lamp Type
LED GLS Halogen
Material
Plastic
Mounting
Most Grid Plates
Mounting Depth
35mm
Number of Gangs
1
Number of Modules
1
Number of Terminals
3
Number of Ways
2
Operating Load
0 - 150W - Mains Halogen; 0 - 200W - Incandescent; 0 - 100W LED Lamps and Fittings
Operation Type
Push On / Off
Packaging Types
Bag
Power Rating
120W
Product Range
V-Pro
Standards
BS EN 60669-2-1
Suitable For
MK, Schneider Ultimate, Schneider Lisse, Crabtree, Hager, Deta, BG and Varilight PowerGrid
Terminal Capacity Live Neutral
3 x 1.5mm²
Unspsc V18
39122206
Voltage Rating
230V
Weight
0.16kg
Width
26mm
