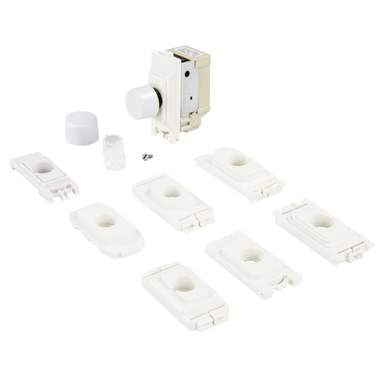

Varilight 300W 2 Way LED Replacement Dimmer Module
Part Code: MJP300
Stock Code: 2264-3332
Varilight 300W 2 Way LED Replacement Dimmer Module
Part Code: MJP300
Stock Code: 2264-3332
Features
- To replace dimmer modules in an already existing product
- V-Pro intelligent dimming technology
- Soft start feature and intelligent overload protection
- Adjustable minimum brightness setting and choice of driving modes
- Suitable for many dimmable LED lamps
- Maximum load rating: LED; 300W [Halogen; 500W]
- Intended applications: Domestic lighting circuits including many dimmable LEDs [Max 30 LEDs]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Varilight
- Colour
- Cream
- Compliance
- UKCA, CE
- Current Rating
- 2.2A
- Depth
- 42mm
- Dimensions
- (H)52 mm x (W)26 mm x (D)42 mm
- Finish
- Cream
- Guarantee
- Lifetime
- Height
- 52mm
- Lamp Type
- LED GLS Halogen
- Mounting
- Modular
- Number of Gangs
- 1
- Number of Modules
- 1
- Number of Terminals
- 3
- Number of Ways
- 2
- Operation Type
- Push On / Off
- Packaging Types
- Bag
- Power Rating
- 300W
- Product Range
- V-Pro
- Standards
- BS EN 60669-2-1
- Terminal Capacity Earth
- 3 x 1.5mm²
- Terminal Capacity Live Neutral
- 3 x 1.5mm²
- Unspsc V18
- 39122206
- Unspsc V24
- 39122206
- Voltage Rating
- 250V
- Weight
- 0.30000kg
- Width
- 26mm
