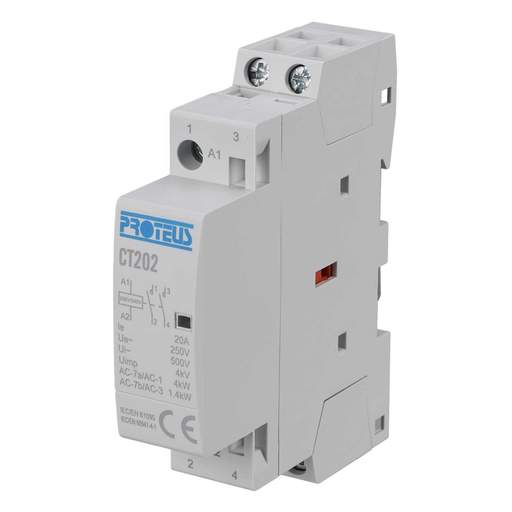

Proteus 20A 2 Pole 230V 1 Module NO Contactor

Part Code: CT202

Stock Code: 0013-9402

Proteus 20A 2 Pole 230V 1 Module NO Contactor

Part Code: CT202

Stock Code: 0013-9402

Delivery

4 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Provides a method of remotely switching single and three phase loads
  • Ideal for switching heating, lighting and ventilation circuits
  • Use in conjunction with REC supply off-peak tariffs
  • Suitable for mounting on a standard DIN rail
  • Fully compatible with Proteus Consumer units and small enclosures

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Coil Voltage
230V
Colour
Grey
Contact Configuration
2 NO
Current Rating
20A
Depth
68mm
Dimensions
(H)86 mm x (W)18 mm x (D)68 mm
Guarantee
1 Year
Height
86mm
Mounting
DIN Rail
Number of Modules
1
Number of Poles
2 Pole
Packaging Types
Each
Product Range
Contactors
Standards
IEC 60947-4-1, EN 60947-4-1, IEC 61095, EN 61095
Unspsc V18
39121529
Voltage Rating
230V
Weight
0.14kg
Width
18mm
