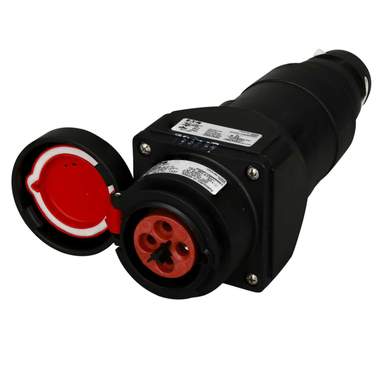

Crouse-Hinds CEAG 16A 3P+E 415V Zone 1 Ex Plug IP66
Part Code: GHG5117406R0001
Stock Code: 2290-3441
Crouse-Hinds CEAG 16A 3P+E 415V Zone 1 Ex Plug IP66
Part Code: GHG5117406R0001
Stock Code: 2290-3441
Features
- Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications
- Easy plug in with low insertion force
- Suitable for indoor and outdoor use
- Strain relief to reduce the risk of the coupler breaking
- IP66 rated to indicate housing is dust tight and protected against water jets and rain
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2G / Ex db eb [ia] IIC / EX IIB H2 T6 II 2 D Ex IIIC / IIIB T80 Db
- Certification Code
- IECEX BVS 17.0045X
- Colour
- Red
- Current Rating
- 16A
- Dimensions
- (L)192 mm x (W)84 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Length
- 192mm
- Material
- Polyamide
- Mounting
- Trailing
- Number of Pins
- 4
- Number of Poles
- 3P E
- Packaging Types
- Each
- Unspsc V18
- 39121402
- Unspsc V24
- 39121402
- Voltage Rating
- 415V
- Weight
- 0.35000kg
- Width
- 84mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
