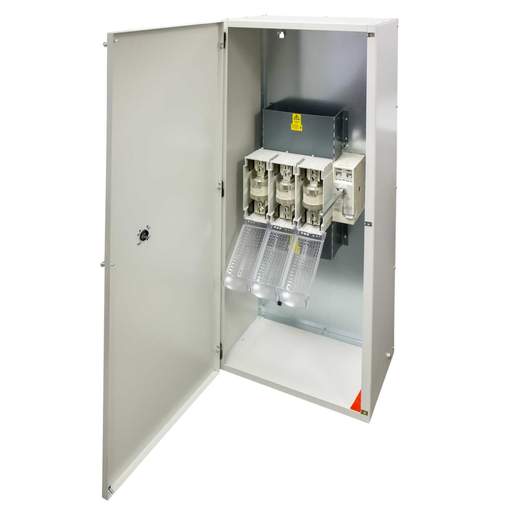

Proteus 630A TP+N Metal Fused Switch
Part Code: 630FS
Stock Code: 0014-0626
Proteus 630A TP+N Metal Fused Switch
Part Code: 630FS
Stock Code: 0014-0626
Features
- Switch mechanism rated at 65kA when fitted with appropriate BS88 fuses
- Heavy duty interlocking operating handle
- Removable door
- Padlockable in "OFF" position
- Padlockable in "ON" position [handle change]
- Unique roller contact design
- Fully rated BS88 fuses fitted
- 4pole configuration available upon request
- Built-in cable box suitable for most applications
- Fully rated at AC23B category of duty [inductive load]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 630A
- Depth
- 355mm
- Dimensions
- (H)1300 mm x (W)500 mm x (D)355 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Handle Type
- Heavy Duty Interlocking
- Height
- 1300mm
- Lockable
- Yes
- Material
- Full Cold Rolled Steel
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Product Range
- Heavy Duty Switch Disconnector Fuses
- Standards
- BS EN 60439-3
- Supplied With
- BS88 fuses
- Type
- Euro Switchfuses
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 400V
- Weight
- 33.00000kg
- Width
- 500mm
