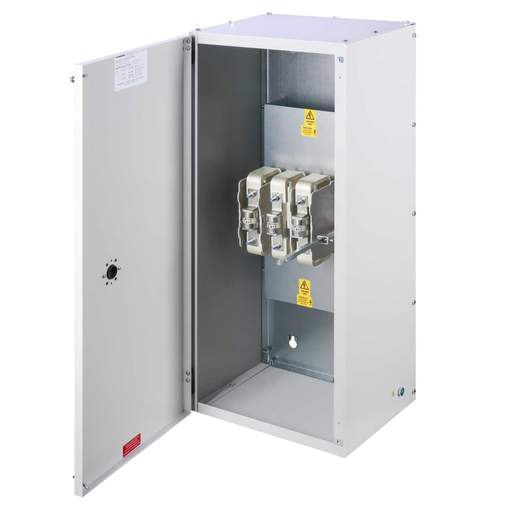

Proteus 400A TP+N Metal Fused Switch
Part Code: U400FS
Stock Code: 0014-1754
Proteus 400A TP+N Metal Fused Switch
Part Code: U400FS
Stock Code: 0014-1754
Features
- Switch mechanism rated at 65kA when fitted with appropriate BS88 fuses
- Heavy duty interlocking handle
- Fully rated BS88 fuses fitted
- 4 pole configuration available upon request
- Built-in cable box suitable for most applications
- Robust heavy duty steel enclosure
- Folded construction for extra rigidity
- Flush fitting door, removable for ease of installation
- Fully insulated rotary operating handle
- Padlockable in the OFF position for security
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 400A
- Depth
- 330mm
- Dimensions
- (H)900 mm x (W)400 mm x (D)330 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Handle Type
- Fully Insulated Rotary
- Height
- 900mm
- IP Rating
- IP31
- Material
- Full Cold Rolled Steel
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Power Rating
- 220kW
- Product Range
- U Range Switch Disconnector Fuses
- Standards
- BS EN 60439-3
- Supplied With
- BS88 fuses
- Terminal Capacity
- 240mm²
- Type
- Euro Switchfuses
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 400V
- Weight
- 31.00000kg
- Width
- 400mm
- kW Rating
- 220kW
