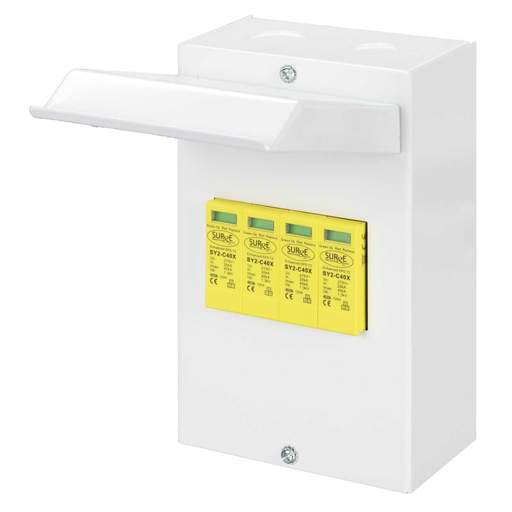

MCG 40kA 4 Module 3 Pole and Neutral Type 2+3 Surge Protector with Metal Enclosure
Part Code: SY2-C40XME
Stock Code: 2441-3887
MCG 40kA 4 Module 3 Pole and Neutral Type 2+3 Surge Protector with Metal Enclosure
Part Code: SY2-C40XME
Stock Code: 2441-3887
Features
- Ideal for industrial applications
- Use 32A to 63A backup MCB or RCBO [sold separately]
- Suitable for TN-C-S systems
- Compliant to 18th Edition Wiring Regulations [BS 7671 Surge Protection]
- Enclosure features 1mm thick metal construction body
- Complete with drop down metal cover, DIN rail and earth bar
- Raised key holes for secure easy installation
- Circular cable entry knockouts top and bottom
- Finished in white polyester powder coating
- IP20 rated
- Not pre-wired [supplied with wiring instructions]
- Metal enclosure conforms to BS 7671 Amendment 3 and BS EN 61439-3
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Surge
- Cable Size Range
- 6 - 16mm²
- Colour
- White/Yellow
- Compliance
- UKCA, CE
- Depth
- 82mm
- Dimensions
- (H)175 mm x (W)110 mm x (D)82 mm
- Guarantee
- 10 Years
- Height
- 175mm
- Incoming Terminal Capacity
- 6 - 16 mm²
- Material
- Sheet Steel/Plastic
- Mounting
- Surface
- Number of Modules
- 4
- Number of Poles
- Triple Pole and Neutral
- Outgoing Terminal Capacity
- 6 - 16 mm²
- Packaging Types
- Each
- Standards
- BS 7671, IEC 61643-1, EN 61643-11, BS 7671 Amendment 3, BS EN 61439-3
- Suitable For
- TN-C-S systems
- Type
- 2 3
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Weight
- 1.10000kg
- Width
- 110mm
