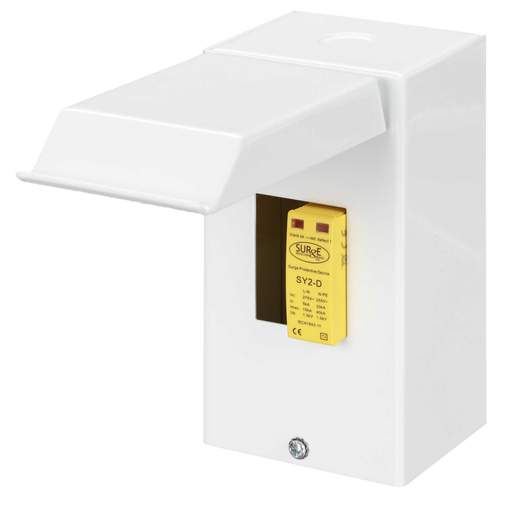

MCG 15kA 1 Module Single Pole Type 2+3 Surge Protector with Metal Enclosure
Part Code: SY2-DME
Stock Code: 2441-3893
MCG 15kA 1 Module Single Pole Type 2+3 Surge Protector with Metal Enclosure
Part Code: SY2-DME
Stock Code: 2441-3893
Features
- Ideal for domestic applications
- Suitable for TN-S, TN-C-S and TT earthing systems
- Compliant to 18th Edition Wiring Regulations [BS 7671:2018 Surge Protection]
- Enclosure features 1mm thick metal construction body
- Complete with drop down metal cover, DIN rail and earth bar
- Raised key holes for secure easy installation
- Circular cable entry knockouts top and bottom
- Finished in white polyester powder coating
- IP20 rated
- Not pre-wired [supplied with wiring instructions]
- Metal enclosure conforms to BS 7671 Amendment 3:2015 and BS EN 61439-3
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Surge
- Cable Size Range
- 1.5 - 6mm²
- Colour
- White/Yellow
- Compliance
- CE
- Depth
- 82mm
- Dimensions
- (H)146 mm x (W)82 mm x (D)82 mm
- Guarantee
- 10 Years
- Height
- 146mm
- Incoming Terminal Capacity
- 1.5 - 6 mm²
- Material
- Sheet Steel/Plastic
- Maximum Discharge Current
- 15kA
- Mounting
- Surface
- Number of Modules
- 1
- Number of Poles
- Single Pole and Neutral
- Outgoing Terminal Capacity
- 1.5 - 6 mm²
- Packaging Types
- Each
- Standards
- BS 7671:2018, IEC 61643-1, EN 61643-11, BS 7671 Amendment 3:2015, BS EN 61439-3
- Suitable For
- TN-S, TN-C-S and TT Earthing
- Type
- 2 + 3
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Weight
- 0.81000kg
- Width
- 82mm
