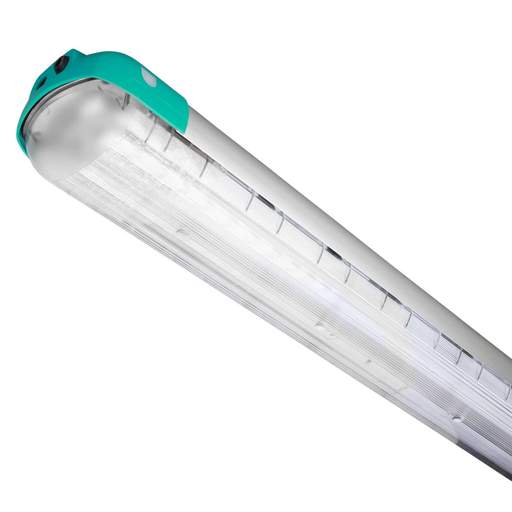

Petrel 60W 4ft LED ExE Zone 1 Emergency Fitting
Part Code: 9LED4700/EM
Stock Code: 2682-2254
Petrel 60W 4ft LED ExE Zone 1 Emergency Fitting
Part Code: 9LED4700/EM
Stock Code: 2682-2254
Features
- High efficiency LED luminaire suitable for zone 1 hazardous area applications
- 3 hour duration emergency version fitted with integral batteries and charger units
- Low maintenance high output LED light source
- Class leading light output
- Single point locking mechanism and mounting is enabled using quick fit T bolts in a channel for maximum flexibility
- Captive diffuser with isolation switch for safe installation and maintenance
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- Ex eb mb op is IIC Gb T4 Ex tc op is T86°C IIIB Dc
- Cable Entry
- 4 x M20
- Certification Code
- CML 16ATEX3397X CML 17ATEX3049X IECEx CML 16.0149X
- Depth
- 142mm
- Dimensions
- (L)1365 mm x (W)193 mm x (D)142 mm
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained / Non-Maintained
- Fixing Centres
- 1055mm
- Gear Option
- Emergency
- Guarantee
- 5 Years
- IP Rating
- IP65
- Lamp Life
- 50000h
- Lamp Type
- Integrated LED
- Length
- 1365mm
- Lumens Output
- 4212lm
- Material
- Aluminium / Polycarbonate
- Mounting
- Surface
- Operating Temperature Range
- -20 - 55°C
- Packaging Types
- Each
- Power Rating
- 60W
- Product Range
- 9 Series
- Standards
- EN 60079-0, EN 60079-15, EN 60079-31
- Unspsc V18
- 39111501
- Unspsc V24
- 39111501
- Voltage Rating
- 110V 230V
- Weight
- 11.20000kg
- Width
- 193mm
- Zone Rating
- Zone 1 Zone 2 Zone 22
