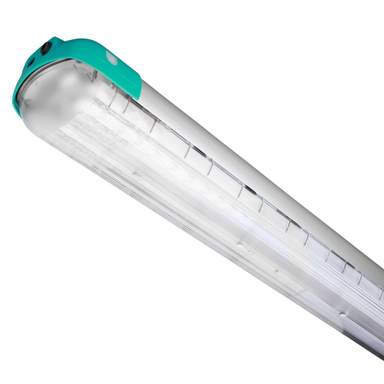

Petrel 75W 5ft LED Zone 2 ExnA Emergency Light Fitting
Part Code: XNLED157/EM/T
Stock Code: 2793-3808
Petrel 75W 5ft LED Zone 2 ExnA Emergency Light Fitting
Part Code: XNLED157/EM/T
Stock Code: 2793-3808
Features
- Zone 2 LED luminaire for use in both internal and external hazardous area applications
- 3 hour duration emergency model fitted with integral batteries and charger units
- Unrestricted breathing protection means no annual inspection costs
- Stainless steel clips means reduced corrosion
- Push fit gear tray for simple, fast installation
- Low maintenance high efficiency LED light source
- Suitable for central battery operation
- Please note warranty does not cover battery
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 3 GD Ex nA nC IIC T4 Gc, Ex tc IIIC T135°C Dc
- Cable Entry
- 2 x M20
- Certification Code
- PET 14 ATEX TFXNX, PET 22 UKEX TFXNX
- Colour
- Light Grey
- Depth
- 108mm
- Dimensions
- (L)1612 mm x (W)102 mm x (D)108 mm
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained / Non-Maintained
- Gear Option
- Emergency
- Guarantee
- 5 Years
- IP Rating
- IP65
- Lamp Life
- 50000h
- Lamp Type
- Integrated LED
- Length
- 1612mm
- Lens Colour
- Clear
- Lumens Output
- 6637lm
- Material
- GRP / Polycarbonate
- Mounting
- Surface
- Operating Temperature Range
- -20 - 51°C
- Packaging Types
- Each
- Power Rating
- 75W
- Product Range
- XNLED
- Standards
- EN 60079-0, EN 60079-15, EN 60079-18, EN 60079-31
- Unspsc V18
- 39111501
- Unspsc V24
- 39111501
- Voltage Rating
- 230V
- Weight
- 5.50000kg
- Width
- 102mm
- Zone Rating
- Zone 2 Zone 22
