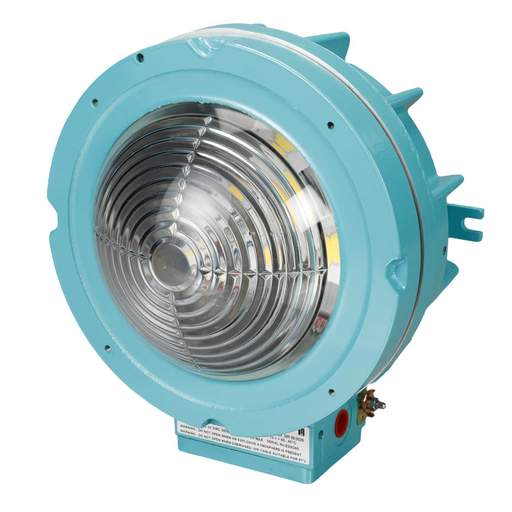

Petrel 60W LED Exd Zone 1 Bulkhead
Part Code: 660L/230
Stock Code: 2682-2269
Petrel 60W LED Exd Zone 1 Bulkhead
Part Code: 660L/230
Stock Code: 2682-2269
Features
- LED bulkhead suitable for Zone 1 gas and Zone 21 dust environments
- Features an integral terminal chamber, external earthing and fixed or pivoting mounting brackets
- Group IIC – suitable for all gas environments
- Marine grade aluminium construction
- Low installation costs with integral "e" terminal chamber [inexpensive glanding and loop in loop out cabling]
- Certified with integral LED module
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- Ex II 2GD Ex d e IIC T5 Gb, Ex d e IIC T6 Gb, Ex tb IIIC
- Cable Entry
- 2 x M20
- Certification Code
- SIRA 00ATEX1047, IECEx SIR09.0028
- Colour
- Teal
- Colour Temperature
- 4000 K
- Depth
- 194mm
- Diameter
- 287mm
- Dimensions
- (Dia)287 mm x (W)334 mm x (D)194 mm
- Frequency
- 50/60 Hz
- Guarantee
- 5 Years
- IP Rating
- IP66
- Lamp Type
- Integrated LED
- Lumens Output
- 3100lm
- Material
- Aluminium / Glass
- Mounting
- Surface
- Operating Temperature Range
- -20 - 100°C
- Packaging Types
- Each
- Power Rating
- 60W
- Product Range
- 600 Series
- Standards
- EN 60079 -0, -1, -7, -31
- Unspsc V18
- 39111503
- Unspsc V24
- 39111503
- Voltage Rating
- 230V AC 230V DC
- Weight
- 12.50000kg
- Width
- 334mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
