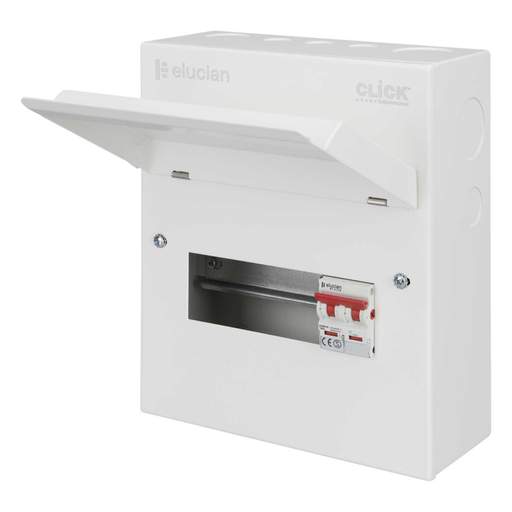

Scolmore Click Elucian 8 Way 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: CUEB8MS6
Stock Code: 2682-9085
Scolmore Click Elucian 8 Way 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: CUEB8MS6
Stock Code: 2682-9085
Features
- Supplied with complete complement of earth and neutral terminals along with marking labels, busbar and instruction leaflet
- Tail clamp pre-installed
- Includes 2 x MCB style full blanks
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Variable Knockout Sizes
- Current Rating
- 100A
- Depth
- 115mm
- Dimensions
- (H)260 mm x (W)222 mm x (D)115 mm
- Door Type
- Top Hinged
- Guarantee
- 10 Years
- Height
- 260mm
- IP Rating
- IP20
- Incoming Device
- 100A DP Isolator
- Incoming Terminal Capacity
- 25mm²
- Material
- Metal
- Mounting
- Surface
- Number of Modules
- 8
- Number of Outgoing Ways
- 6
- Packaging Types
- Each
- Product Range
- Elucian
- Standards
- BS EN 61439-3, BS EN 60947-3
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 2.84600kg
- Width
- 222mm
