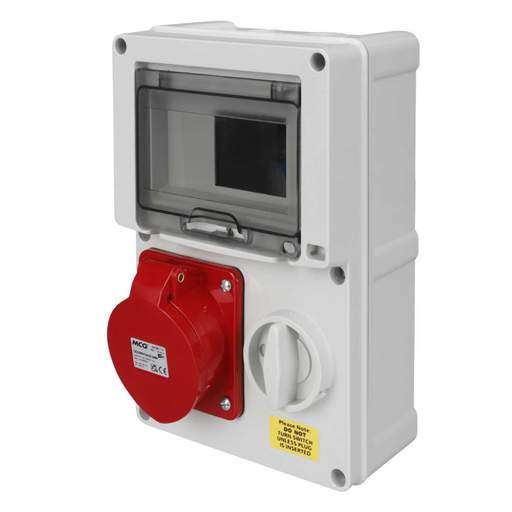

MCG Connexs 32A 3P+N+E 415V Interlocked Switched Socket with RCD Compartment IP44
Part Code: CX325P415SISCOMP
Stock Code: 2707-7302
MCG Connexs 32A 3P+N+E 415V Interlocked Switched Socket with RCD Compartment IP44
Part Code: CX325P415SISCOMP
Stock Code: 2707-7302
Features
- Built in RCD compartment [RCD not supplied]
- Padlockable handle and RCD compartment
- Corrosion and impact resistant
- Colour coded for fast identification of operating voltage
- Conforms to EN 60309-1/2/4
- Suitable for small commercial and industrial applications
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Knockouts [M20 and M25]
- Colour
- Red
- Compliance
- UKCA, CE, RoHS and REACH
- Current Rating
- 32A
- Depth
- 123mm
- Dimensions
- (H)255 mm x (W)166 mm x (D)123 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 255mm
- IP Rating
- IP44
- Isolator
- Yes
- Material
- Thermoplastic
- Mounting
- Wall
- Number of Poles
- 3P N E
- Packaging Types
- Each
- Product Range
- Connexs
- Standards
- EN 60309-1/2/4
- Supplied With
- M20 and M25 Compression Glands
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 1.22500kg
- Width
- 166mm
