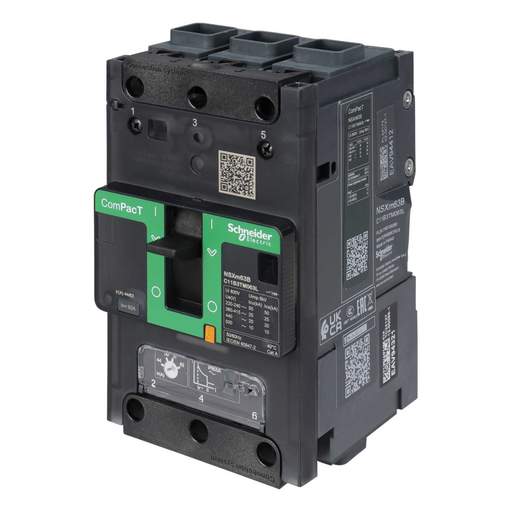

Schneider Merlin Powerpact4 63A Triple Pole 25kA ComPacT NSXm TMD Trip MCCB
Part Code: C11B3TM063L
Stock Code: 2719-3069
Schneider Merlin Powerpact4 63A Triple Pole 25kA ComPacT NSXm TMD Trip MCCB
Part Code: C11B3TM063L
Stock Code: 2719-3069
Features
- Suitable for the ComPacT NSXm Powerpact 4 Panelboards ONLY [examples are PP4NB26 [6 way], PP4NB28 [8 way] PP4NB212 [12 way] all available separately]
- ComPacT NSXm MCCB's are one of the smallest on the market
- Reducing up to 40% mounting and cabling time
- DIN rail and plate mounting capability
- EverLink lugs
- Breaking capacity 25kA at 415V
- Triple Pole
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin Powerpact4
- Current Rating
- 63A
- Depth
- 80mm
- Dimensions
- (H)137 mm x (W)81 mm x (D)80 mm
- Guarantee
- 18 Months
- Height
- 137mm
- Mounting
- Panel
- Number of Modules
- 3
- Number of Poles
- Triple Pole
- Packaging Types
- Each
- Product Range
- ComPacT NSXm Powerpact 4
- Short Circuit Rating
- 25kA
- Standards
- IEC 60947-2
- Type
- Thermal Magnetic TM-D
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 415V
- Weight
- 1.21000kg
- Width
- 81mm
