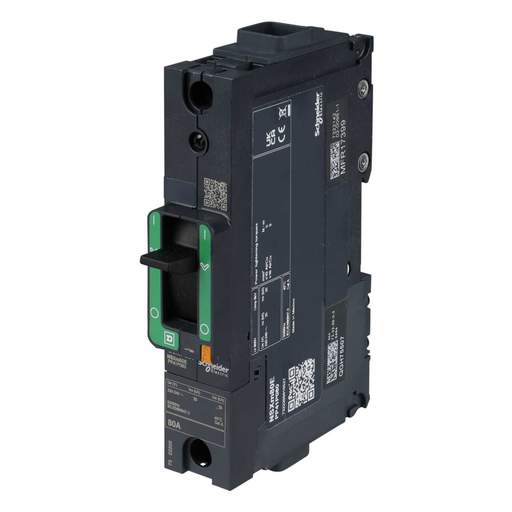

Schneider Merlin Powerpact4 80A Single Pole 35kA ComPact NSXm TMD Trip MCCB
Part Code: PP41P080
Stock Code: 2719-6633
Schneider Merlin Powerpact4 80A Single Pole 35kA ComPact NSXm TMD Trip MCCB
Part Code: PP41P080
Stock Code: 2719-6633
Features
- Suitable for the ComPacT NSXm Powerpact 4 Panelboards ONLY [examples are PP4NB26 or PP4NB26SM [6 way], PP4NB28 or PP4NB28 [8 way] PP4NB212 or PP4NB212SM [12 way] all available separately]
- ComPacT NSXm MCCB's are one of the smallest on the market
- Reducing up to 40% mounting and cabling time
- DIN rail and plate mounting capability
- EverLink lugs
- Breaking capacity 35kA at 230V
- *Compatible with newer versions PP4BJ1P series
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin Powerpact4
- Current Rating
- 80A
- Depth
- 80mm
- Dimensions
- (H)137 mm x (W)27 mm x (D)80 mm
- Guarantee
- 18 Months
- Height
- 137mm
- Mounting
- Panel
- Number of Modules
- 1
- Number of Poles
- Single Pole
- Packaging Types
- Each
- Product Range
- ComPacT new generation
- Short Circuit Rating
- 35kA
- Type
- Thermal Magnetic TM-D
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 230V
- Weight
- 0.52000kg
- Width
- 27mm
