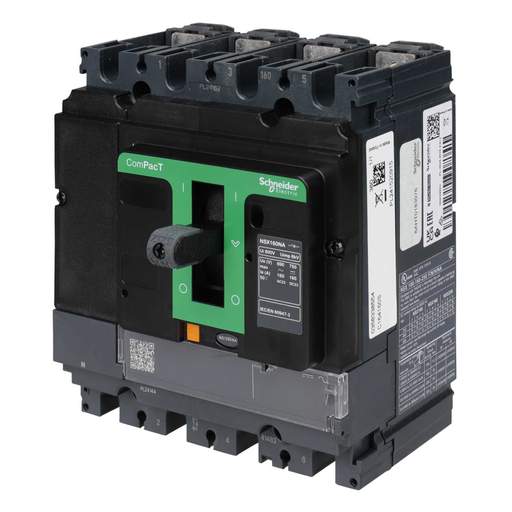

Schneider Merlin Powerpact4 160A 4P ComPacT Switch Disconnector NSX160NA
Part Code: C164160S
Stock Code: 2719-3468
Schneider Merlin Powerpact4 160A 4P ComPacT Switch Disconnector NSX160NA
Part Code: C164160S
Stock Code: 2719-3468
Features
- Suitable for the ComPacT NSXm Powerpact 4 Panelboards ONLY [examples are PP4NB26 [6 way], PP4NB28 [8 way] PP4NB212 [12 way] all available separately]
- Reducing up to 40% mounting and cabling time
- Four Pole Switch Disconnector
- DIN rail and plate mounting capability
- The operational current is 160A at 415VAC 50/60Hz for AC22A and AC23A utilization categories. The operational voltage is 690VAC 50/60Hz
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin Powerpact4
- Current Rating
- 160A
- Depth
- 86mm
- Dimensions
- (H)161 mm x (W)140 mm x (D)86 mm
- Guarantee
- 18 Months
- Height
- 161mm
- Number of Poles
- Four Pole
- Packaging Types
- Each
- Product Range
- ComPacT new generation
- Short Circuit Rating
- 3.6kA
- Standards
- EN/IEC 60947-3
- Type
- Switch Disconnector
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 690V
- Weight
- 2.43400kg
- Width
- 140mm
