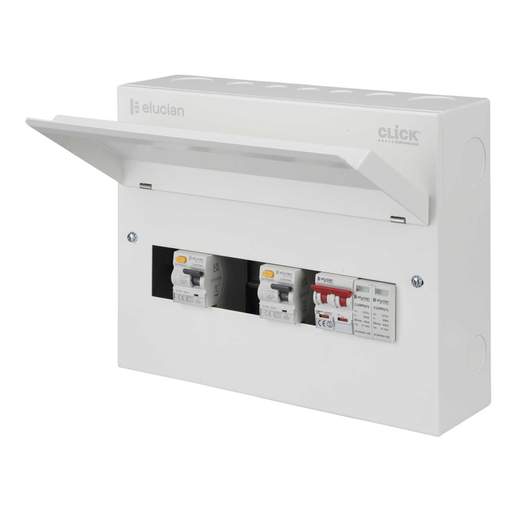

Scolmore Click Elucian 14 Way Dual 80A Type A RCD High Integrity Metal Clad Consumer Unit with SPD
Part Code: CUEHIB14MSRCDSP6
Stock Code: 2724-7495
Scolmore Click Elucian 14 Way Dual 80A Type A RCD High Integrity Metal Clad Consumer Unit with SPD
Part Code: CUEHIB14MSRCDSP6
Stock Code: 2724-7495
Features
- Supplied with 2 x 80A 30mA Type A RCDs, 1 x 100A DP isolator, 1 x Type 2 Single Module SPD and full complement of earth and neutral terminals
- Includes 2 x MCB style full blanks
- Tail clamp pre-installed
- 6 useable ways
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Variable Knockout Sizes
- Current Rating
- 100A
- Depth
- 115mm
- Dimensions
- (H)260 mm x (W)330 mm x (D)115 mm
- Door Type
- Top Hinged
- Guarantee
- 10 Years
- Height
- 260mm
- IP Rating
- IP20
- Incoming Device
- 100A DP Isolator
- Incoming Terminal Capacity
- 35mm²
- Material
- Metal
- Mounting
- Surface
- Number of Modules
- 14
- Number of Outgoing Ways
- 6
- Packaging Types
- Each
- Product Range
- Elucian
- Rcd Rating
- 80A
- Rcd Type
- A
- Standards
- BS EN 61439-3
- Surge Protection Fitted
- Yes
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 5.50000kg
- Width
- 330mm
