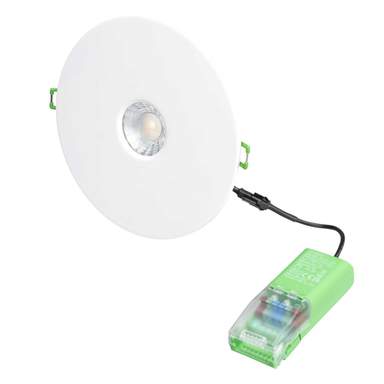

JCC V50 Pro 6W LED Fire Rated Colour Selectable Dimmable Tilt Downlight White
Part Code: JC1026/WH
Stock Code: 2763-7633
JCC V50 Pro 6W LED Fire Rated Colour Selectable Dimmable Tilt Downlight White
Part Code: JC1026/WH
Stock Code: 2763-7633
Features
- Colour selectable temperatures via switch located underneath the bezel [3000K and 4000K]
- IP65, suitable for bathrooms with a slimline double hinged driver, including colour coded loop in / loop out terminals
- 20° tilt and 350° rotation
- Low profile design, for installations in shallow 50mm ceiling voids
- Standard 2 year warranty, increases to 5 years domestic / 3 years commercial when registered with JCC witin 1 year of purchase
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 60°
- Class Type
- Class 2
- Colour
- White
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 3000/4000 K
- Compliance
- UKCA, CE
- Cut Out
- 86mm
- Depth
- 62.7mm
- Diameter
- 100mm
- Dimensions
- (Dia)100 mm x (D)62.7 mm
- Dimmable
- Yes
- Energy Saving
- Yes
- Finish
- White
- Fire Rated
- Yes
- Guarantee
- 2 Years
- IP Rating
- IP65
- Lamp Life
- 51000h
- Lamp Type
- Integrated LED
- Light Source Energy Rating
- F
- Lumens Output
- 600lm 650lm
- Mounting
- Recessed
- Packaging Types
- Each
- Power Rating
- 6W
- Product Range
- V50
- Standards
- BS EN 60598
- Unspsc V18
- 39111515
- Unspsc V24
- 39111515
- Voltage Rating
- 230V
- Weight
- 0.38000kg
