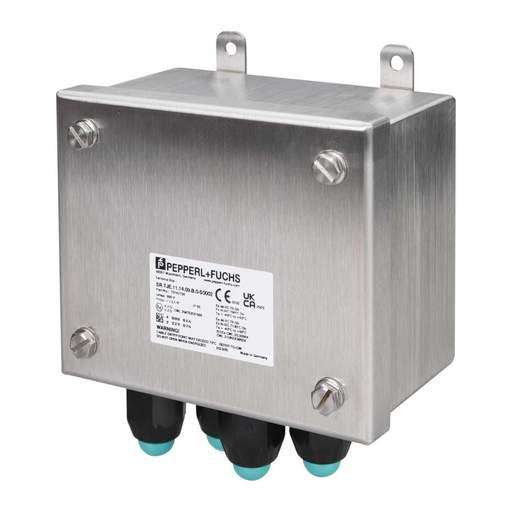

Pepperl & Fuchs Zone 1 Ex Junction Box with 6 x UT6 Terminals Stainless Steel
Part Code: 70142756
Stock Code: 2779-8472
Pepperl & Fuchs Zone 1 Ex Junction Box with 6 x UT6 Terminals Stainless Steel
Part Code: 70142756
Stock Code: 2779-8472
Features
- Stainless steel AISI 316L
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Terminals 6 x UT6 and 2 x UT6 PE
- Bottom face cable glands polyamide, 4 x M20
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 GD, Ex eb IIC T* Gb, Ex tb IIIC T** °C Db, T6/T80 °C @ Ta 40 °C, T4/T130 °C @ Ta 60 °C
- Cable Entry
- 4 x M20
- Certification Code
- CML 21 UKEX 3892X
- Colour
- Grey
- Depth
- 87mm
- Dimensions
- (H)110 mm x (W)136 mm x (D)87 mm
- Guarantee
- 1 Year
- Height
- 110mm
- IP Rating
- IP66
- Material
- Stainless Steel
- Number of Terminals
- 6
- Packaging Types
- Each
- Terminal Capacity
- 6mm²
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Weight
- 1.00000kg
- Width
- 136mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
