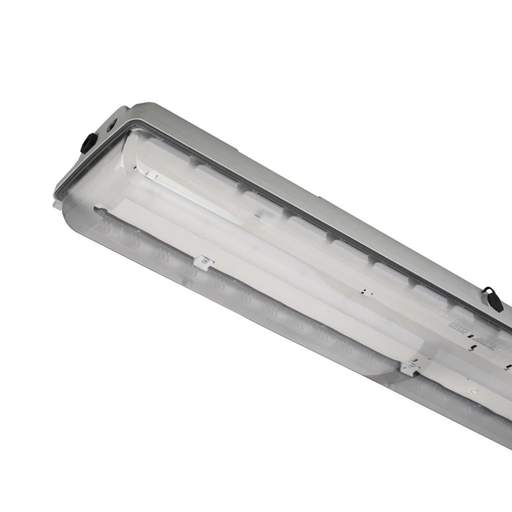

R Stahl 50W 5ft LED Zone 1 Hazardous Area Fitting 5000K
Part Code: 316811
Stock Code: 2795-7673
R Stahl 50W 5ft LED Zone 1 Hazardous Area Fitting 5000K
Part Code: 316811
Stock Code: 2795-7673
Features
- Zone 1, 2 , 21 and 22 light fitting
- Labyrinth seal securing high IP66/67
- High efficacy up to 139 lm/W
- Integrated LED
- Daylight white light [5000K]
- Low glare
- Long life time
100,000hrs @60°C - Easy install through push-fit terminals
- Adjustable fixing points
- ATEX, IECEx, INMETRO and DNV GL certificates
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex db eb ib op is IIC T4 Gb, II 2 D Ex tb op is IIIC T100 °C Db
- Cable Entry
- 4 x M20 [3 x Plugged]
- Class Type
- Class 1
- Colour
- Grey
- Colour Temperature
- 5000 K
- Depth
- 125mm
- Dimensions
- (L)1610 mm x (W)184.5 mm x (D)125 mm
- Efficacy Rating
- 139
- Guarantee
- 1 Year
- IP Rating
- IP66 / IP67
- Ik Rating
- IK10
- Lamp Life
- 100000h
- Lamp Type
- Integrated LED
- Length
- 1610mm
- Lens Colour
- Clear
- Lumens Output
- 6960lm
- Material
- GRP / Polycarbonate
- Mounting
- Surface
- Operating Temperature Range
- -40 - 60°C
- Packaging Types
- Each
- Power Rating
- 50W
- Unspsc V18
- 39111501
- Unspsc V24
- 39111501
- Voltage Range
- 110 - 230V
- Weight
- 7.00000kg
- Width
- 184.5mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
