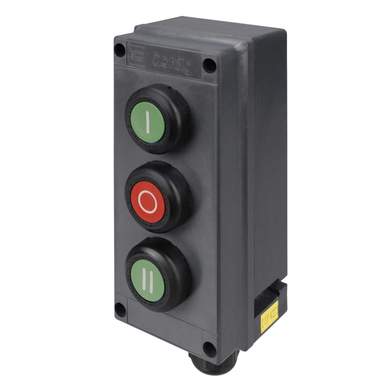

R Stahl Start / Stop Ex Pushbutton Control Station
Part Code: 130692
Stock Code: 2795-7733
Features
- Start / stop pushbutton station
- Green pushbutton "I" [NC / NO] red pushbutton "0" [NC / NO]
- Flexible modular lightweight enclosure made from glass fibre reinforced polyester resin [GRP]
- Suitable for shipping industry and offshore
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex db eb IIC T6 ... T5 Gb II 2 D Ex tb IIIC T80 °C / T95 °C Db
- Cable Entry
- 1 x M25
- Certification Code
- IECEx PTB 06.0025
- Contact Configuration
- 2 NO 2 NC
- Current Rating
- 10A
- Depth
- 72mm
- Dimensions
- (H)139 mm x (W)80 mm x (D)72 mm
- Guarantee
- 1 Year
- Height
- 139mm
- IP Rating
- IP66
- Material
- Polyester / Glass Fibre Reinforced
- Packaging Types
- Each
- Product Range
- ConSig 8040 series
- Unspsc V18
- 39122214
- Unspsc V24
- 39122214
- Voltage Rating
- 550V
- Weight
- 0.04600kg
- Width
- 80mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
