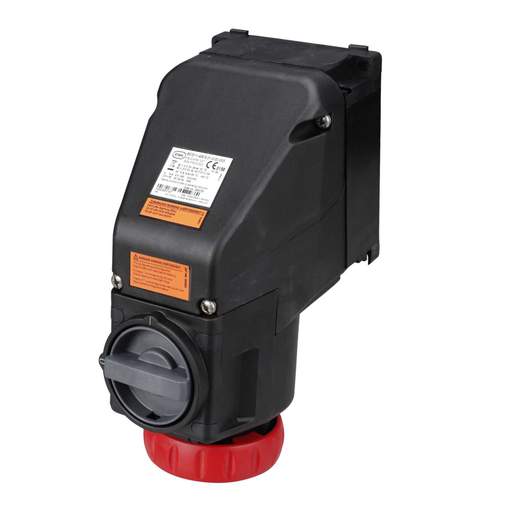

R Stahl 16A 3P+E 415V Ex Interlocked Wall Socket IP66
Part Code: 273926
Stock Code: 2795-7700
R Stahl 16A 3P+E 415V Ex Interlocked Wall Socket IP66
Part Code: 273926
Stock Code: 2795-7700
Features
- Motor switching capacity AC- 3 as per IEC / EN 60947- 3
- Wide temperature range for use
- High mechanical impact and shock resistance
- Perfect protection against the ingress of liquids and dust
- Lockable handle that can be locked in the 0 or I position
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex db eb IIC T6 Gb II 2 D Ex tb IIIC T80 °C Db
- Certification Code
- IECEx PTB 05.0023
- Colour
- Red
- Current Rating
- 16A
- Depth
- 180mm
- Dimensions
- (H)247 mm x (W)115 mm x (D)180 mm
- Guarantee
- 1 Year
- Height
- 247mm
- IP Rating
- IP66
- Material
- Polyamide / Glass Fibre Reinforced
- Mounting
- Wall
- Number of Pins
- 4
- Number of Poles
- 3P E
- Packaging Types
- Each
- Previously Known As
- 150550
- Product Range
- SolConeX
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 1.35000kg
- Width
- 115mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
