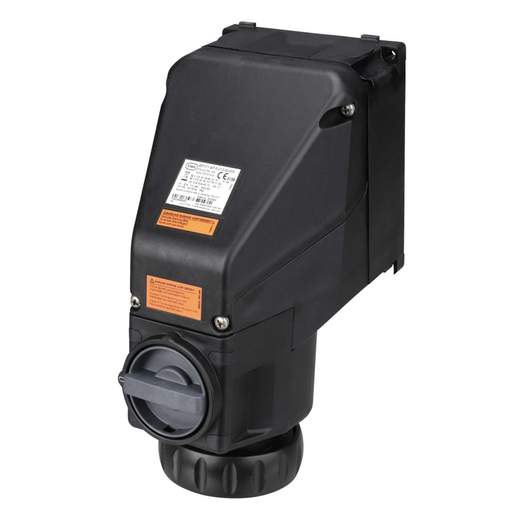

R Stahl 32A 3P+E 500V Ex Interlocked Socket IP66
Part Code: 276194
Stock Code: 2795-7715
R Stahl 32A 3P+E 500V Ex Interlocked Socket IP66
Part Code: 276194
Stock Code: 2795-7715
Features
- Motor switching capacity AC- 3 as per IEC / EN 60947- 3
- Wide temperature range for use
- High mechanical impact and shock resistance
- Perfect protection against the ingress of liquids and dust
- Lockable handle that can be locked in the 0 or I position
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex db eb IIC T6 ... T5 Gb II 2 D Ex tb IIIC T60 °C / T75 °C Db
- Certification Code
- IECEx PTB 05.0024
- Colour
- Black
- Current Rating
- 32A
- Depth
- 206mm
- Dimensions
- (H)280 mm x (W)135 mm x (D)206 mm
- Guarantee
- 1 Year
- Height
- 280mm
- IP Rating
- IP66
- Material
- Polyamide, Glass Fibre Reinforced
- Mounting
- Wall
- Number of Pins
- 4
- Number of Poles
- 3P E
- Packaging Types
- Each
- Previously Known As
- 150894
- Product Range
- SolConeX
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 500V
- Weight
- 2.00000kg
- Width
- 135mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
