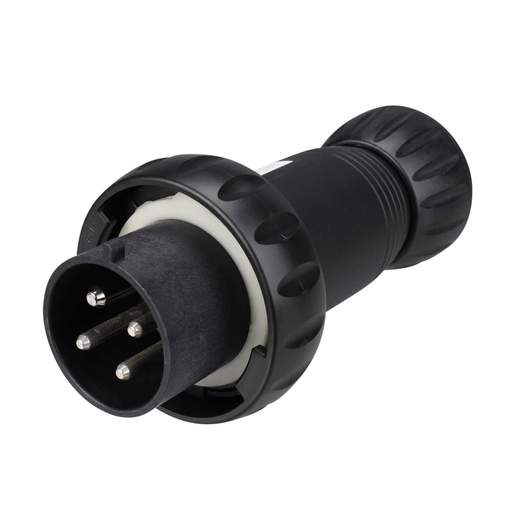

R Stahl 32A 3P+E 500V Zone 1 Ex Plug IP66
Part Code: 275688
Stock Code: 2795-7721
R Stahl 32A 3P+E 500V Zone 1 Ex Plug IP66
Part Code: 275688
Stock Code: 2795-7721
Features
- Full compatibility between SolConeX and CES devices
- No effect of torsion forces from the wire on the seal
- Wide temperature range for use
- High mechanical impact and shock resistance
- Floating pins allowing them to be inserted and removed quickly and easily
- Pivoting strain relief makes it easier to install the cable
- Self cleaning and corrosion free plug pins
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex db eb IIC T6 ... T5 Gb II 2 D Ex tb IIIC T60 °C / T75 °C Db
- Certification Code
- IECEx PTB 05.0024
- Colour
- Black
- Current Rating
- 32A
- Diameter
- 99mm
- Dimensions
- (L)204 mm x (Dia)99 mm x (W)99 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Length
- 204mm
- Material
- Polyamide / Glass Fibre Reinforced
- Mounting
- Trailing
- Number of Pins
- 4
- Number of Poles
- 3P E
- Packaging Types
- Each
- Previously Known As
- 150895
- Product Range
- SolConeX
- Unspsc V18
- 39121402
- Unspsc V24
- 39121402
- Voltage Rating
- 500V
- Weight
- 0.50000kg
- Width
- 99mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
