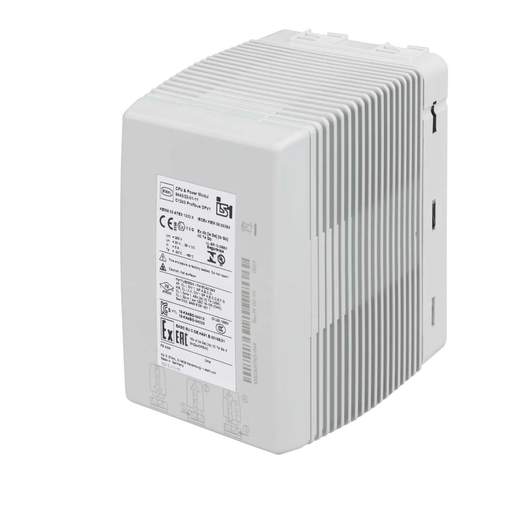

R Stahl CPU / Power Module for Zone 1 / Class I, Div 1 Series
Part Code: 162218
Stock Code: 2795-7739
R Stahl CPU / Power Module for Zone 1 / Class I, Div 1 Series
Part Code: 162218
Stock Code: 2795-7739
Features
- Suitable for Ex i V0/V1 HART PROFIBUS DP
- Supporting system redundancy and optical rings
- CPM in zone 1 can be hot swapped
- Nominal voltage:24V DC
- Integration in plant asset management systems via ServiceBus and FDT/DTM
- Integrated Ex i power supply for up to 8 I/O modules
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex d [ia] [ib] IIC T4 Gb
- Certification Code
- IECEx KEM 08.0038X
- Depth
- 170mm
- Dimensions
- (H)287 mm x (W)96.5 mm x (D)170 mm
- Guarantee
- 1 Year
- Height
- 287mm
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- IS1+
- Unspsc V18
- 39121002
- Unspsc V24
- 39121002
- Weight
- 2.96000kg
- Width
- 96.5mm
- Zone Rating
- Zone 1
