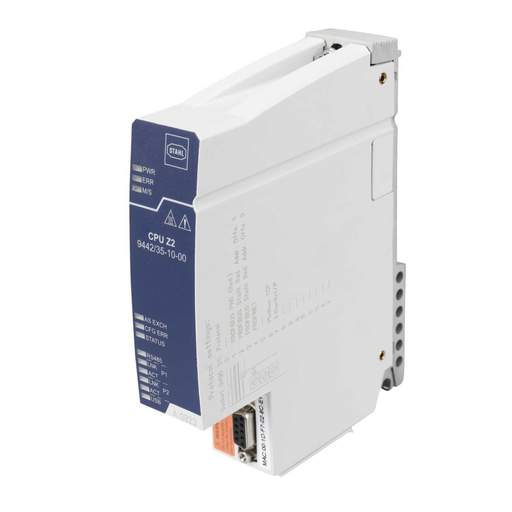

R Stahl IS1+ Remote I/O CPU Module for Zone 2
Part Code: 246854
Stock Code: 2795-7742
R Stahl IS1+ Remote I/O CPU Module for Zone 2
Part Code: 246854
Stock Code: 2795-7742
Features
- Support for PROFIBUS DP, PROFINET, Modbus TCP and EtherNet / IPTM; including HART transmission and redundancy
- RS485 interfaces [max 12Mbit/s] and Ethernet [max 100Mbit/s]
- Comprehensive diagnostics based on NE 107
- Support of FDT / DTM and web server for integration in asset management systems
- Enhanced ambient temperature range from -40°C to 75°C [-40°F to 167°F]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 3 (1) G Ex ec ia [ia Ga] IIC T4 Gc
- Certification Code
- IECEx PTB 17.0031X
- Depth
- 123mm
- Dimensions
- (H)185 mm x (W)96 mm x (D)123 mm
- Guarantee
- 1 Year
- Height
- 185mm
- Packaging Types
- Each
- Product Range
- IS1
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Rating
- 24V
- Weight
- 1.00000kg
- Width
- 96mm
- Zone Rating
- Zone 2
