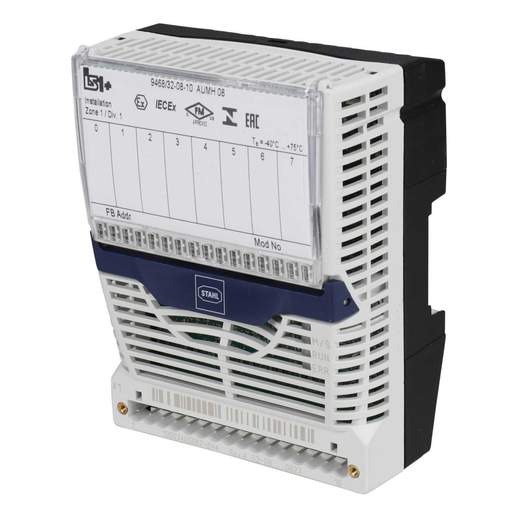

R Stahl IS1+ Remote I/O HART Analogue Universal Module for Zone 1 Ex i
Part Code: 210659
Stock Code: 2795-7757
R Stahl IS1+ Remote I/O HART Analogue Universal Module for Zone 1 Ex i
Part Code: 210659
Stock Code: 2795-7757
Features
- 8 channels can be used individually as inputs or outputs
- Intrinsically safe Ex ia IIC inputs / outputs with line fault monitoring
- Module in Zone 1 and class I, div. 1 can be replaced during operation [hot swap]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 (1) G Ex ia [ia Ga] IIC T4 Gb
- Certification Code
- IECEx DEK 12.0054X
- Depth
- 70mm
- Dimensions
- (H)128 mm x (W)98 mm x (D)70 mm
- Guarantee
- 1 Year
- Height
- 128mm
- Mounting
- DIN Rail
- Number of Channels
- 8
- Packaging Types
- Each
- Previously Known As
- 296070
- Product Range
- IS1+
- Unspsc V18
- 39121002
- Unspsc V24
- 39121002
- Weight
- 0.27500kg
- Width
- 98mm
- Zone Rating
- Zone 1 Zone 2
