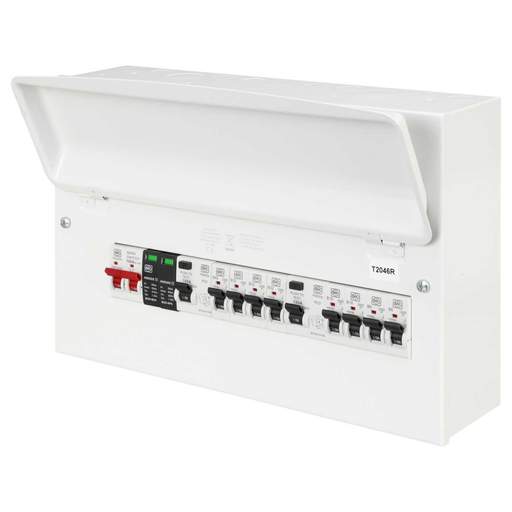

MK Sentry 16 Way Flexible Dual 100A RCD Metal Clad Consumer Unit with SPD and 8 x MCBs
Part Code: YS8666SMET
Stock Code: 2629-0273
MK Sentry 16 Way Flexible Dual 100A RCD Metal Clad Consumer Unit with SPD and 8 x MCBs
Part Code: YS8666SMET
Stock Code: 2629-0273
Features
- Supplied with 2 x 100A 30mA Type A RCDs, 1 x 100A isolator, SPD and MCBs
- Supplied with a quantity of 8 x 6kA B curve MCBs
- MCBs supplied are 2 x 6A, 2 x 16A, 3 x 32A and 1 x 40A
- The flexibility of design allows the RCD to be positioned to suit the required configuration
- Amendment 3 compliant
- BS EN 61439 - 3
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 100A
- Depth
- 116mm
- Dimensions
- (H)244 mm x (W)382 mm x (D)116 mm
- Door Type
- Top Hinged
- Guarantee
- 1 Year
- Height
- 244mm
- IP Rating
- IP2XC
- Incoming Device
- 100A DP Isolator
- Mounting
- Surface
- Number of Modules
- 16
- Number of Outgoing Ways
- 8
- Packaging Types
- Each
- Product Range
- Sentry
- Rcd Rating
- 100A
- Rcd Type
- A
- Standards
- BSEN61439-3
- Supplied With
- 2 x 6A, 2 x 16A, 3 x 32A and 1 x 40A B Curve 6kA MCBs
- Surge Protection Fitted
- Yes
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 5.90000kg
- Width
- 382mm
