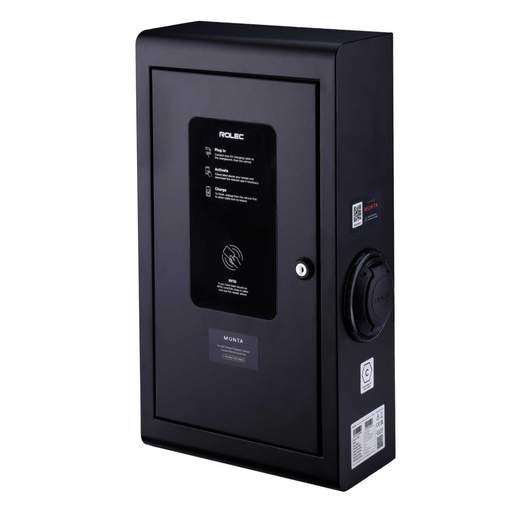

Rolec EV SecuriCharge Smart EV Charger 22kW 2 x Type 2 Socket Black
Part Code: ROLEC0323B
Stock Code: 2861-0545
Rolec EV SecuriCharge Smart EV Charger 22kW 2 x Type 2 Socket Black
Part Code: ROLEC0323B
Stock Code: 2861-0545
Features
- Finance options available - We offer a range of finance options to help you get set up in a way that suits you. Explore your options with our finance calculator [https://www.cef.co.uk/blogs/ev-charging-that-fits-real-world-budgets]
- The SecuriCharge is the perfect wall mounted EV chargepoint for workplaces and car parks with heavy duty vandal resistant features
- Plug and charge, mobile app or RFID controlled charging
- PME, AC 30mA Type A and DC 6mA protection
- Supports dynamic load balancing and static load management
- OCPP 1.6 - can integrate with any app/back office such as VendElectric, Monta, Fuuse, ChargePlace Scotland etc
- Built-in MID approved energy metering
- Cable lock security feature [can be permanently locked by user]
- UK Smart Charge Point Regulations compliant including dual tamper and breach security notifications
- Input supply 415V 63A
- Please note each socket is 32A rated for further information please refer to the manufacturers datasheet
- Please check the latest EV chargepoint model list on the government website for OZEV grant eligibility
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Charging Access
- Free to Use / App / RFID
- Charging Mode
- 3
- Charging Power
- 22kW
- Colour
- Black
- Compliance
- Manufactured in Compliance with BS7671 Wiring Regulations
- Connectivity
- 4G Bluetooth Ethernet Wi-Fi
- Current Rating
- 32A
- Depth
- 155mm
- Dimensions
- (H)575 mm x (W)320 mm x (D)155 mm
- Dynamic Load Managemen
- Yes
- Ev Type
- IEC 62196 (Type 2)
- Frequency
- 50/60 Hz
- Guarantee
- 3 Years
- Height
- 575mm
- IP Rating
- IP54
- Ik Rating
- IK10
- Lockable
- Yes
- Material
- Heavy Duty, Vandal Resistant Steel
- Metered
- Yes
- Mounting
- Wall / Pedestal
- Number of Chargepoints
- 2
- Number of Ways
- 2
- Ocpp Compliant
- OCPP 1.6
- off Peak Charging
- Yes
- Operating Temperature Range
- -30 - 50°C
- Output Type
- 2 x Type 2 Sockets
- Ozev Approval
- WCS
- Packaging Types
- Each
- Pen Fault Protection
- Yes
- Product Range
- SecuriCharge Intelligent
- Socket Protection
- Built-in 30mA Type A RCBO and 6mA DC Sensitive Device
- Status Indicator
- LED
- Suitable For
- Public / Workplace
- Type
- Mode 3
- Unspsc V18
- 25175002
- Unspsc V24
- 25175002
- Voltage Rating
- 415V
- Weight
- 18.00000kg
- Width
- 320mm
- kW Rating
- 22kW
