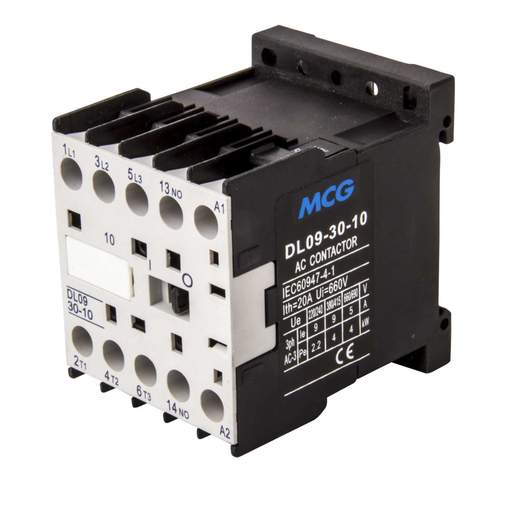

MCG 4kW Mini Contactor 3 NO Contacts 230V Coil 1 NO Aux
Part Code: DL09-30-10 240V
Stock Code: 0462-8491
MCG 4kW Mini Contactor 3 NO Contacts 230V Coil 1 NO Aux
Part Code: DL09-30-10 240V
Stock Code: 0462-8491
Features
- Simple and robust construction
- High mechanical and electrical life
- Coil fitted as standard
- For DIN rail or panel mounting
- Cage type cable terminals
- Note: Overloads or contact blocks are not available for mini contactors
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Auxiliary Contact
- 1 NO
- Coil Voltage
- 240V AC
- Colour
- Black/Grey
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 20A
- Depth
- 58mm
- Dimensions
- (H)58 mm x (W)45 mm x (D)58 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 58mm
- Hp Rating
- 5.5metric hp
- Material
- Metal/Plastic
- Mounting
- DIN Rail / Screw Mounting
- Number of Poles
- 3 Pole
- Operating Temperature Range
- -5 - 40°C
- Packaging Types
- Box
- Standards
- IEC 60947-4-1
- Suitable For
- Heating and Lighting Loads
- Type
- DL09
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 660V
- Weight
- 0.18000kg
- Width
- 45mm
- kW Rating
- 4kW
