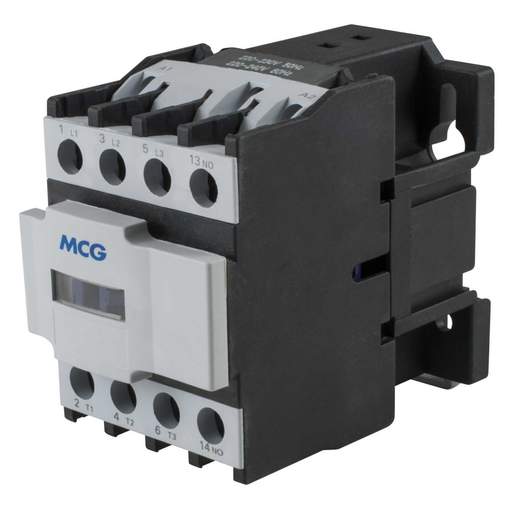

MCG 11kW Contactor 3 NO Contacts 230V Coil

Part Code: DL25-30-10 240V

Stock Code: 0462-8650

MCG 11kW Contactor 3 NO Contacts 230V Coil

Part Code: DL25-30-10 240V

Stock Code: 0462-8650

Delivery

16 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Simple and robust construction
  • High mechanical and electrical life
  • Coil fitted as standard
  • For DIN rail or panel mounting
  • Cage type cable terminals

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Auxiliary Contact
1 NO
Coil Voltage
240V AC
Colour
Black/Grey
Contact Configuration
3 NO
Current Rating Ac1
40A
Current Rating Ac3
25A
Depth
93mm
Dimensions
(H)80 mm x (W)56 mm x (D)93 mm
Frequency
50/60 Hz
Guarantee
1 Year
Height
80mm
Hp Rating
15metric hp
Material
Metal/Plastic
Mounting
DIN Rail / Screw Mounting
Number of Poles
3 Pole
Packaging Types
Box
Standards
IEC 60947-4-1
Suitable For
Heating, Motor and Lighting Loads
Type
DL25
Unspsc V18
39121529
Voltage Rating
660V
Weight
0.521kg
Width
56mm
kW Rating
11kW
