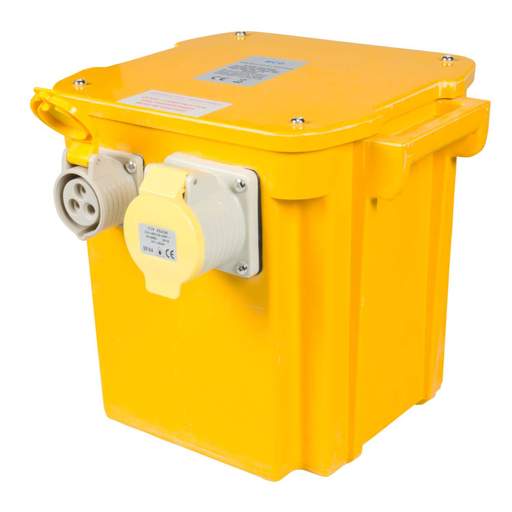

MCG 5.25kVA Single Phase Portable Tool Transformer 110V c/w 2 x 16A, 1 x 32A Sockets
Part Code: CM52503/CL
Stock Code: 0326-3356
MCG 5.25kVA Single Phase Portable Tool Transformer 110V c/w 2 x 16A, 1 x 32A Sockets
Part Code: CM52503/CL
Stock Code: 0326-3356
Features
- 2800VA continuous rating
- 5250VA tool rating
- Supplied with 2 x 16A and 1 x 32A 2P+E sockets
- Supplied with 2m rubber power cable
- Robust GRP enclosure with carry handle
- Cable only, no plug fitted to this model
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Class Type
- Class 1
- Colour
- Yellow
- Compliance
- UKCA, CE
- Continuous Rating
- 2800VA
- Depth
- 345mm
- Dimensions
- (H)280 mm x (W)316 mm x (D)345 mm
- Enclosure Type
- GRP
- Guarantee
- 1 Year
- Height
- 280mm
- IP Rating
- IP44
- Input Voltage
- 230V
- Intermittent Duty
- 5250 VA [5 min On / 15 min Off]
- Material
- Glass Reinforced Plastic (GRP)
- Mounting
- Portable
- Number of Sockets
- 3
- Output Voltage
- 110V
- Packaging Types
- Box
- Safety Thermal Overload Cut Out
- Yes
- Socket Current Rating
- 16A 32A
- Standards
- BS EN IEC 61558-1/2-23
- Supplied With
- 1.7m H07RN-F 3G 2.5mm²
- Unspsc V18
- 39121001
- Unspsc V24
- 39121001
- Va Rating
- 5250VA
- Weight
- 30.40000kg
- Width
- 316mm
