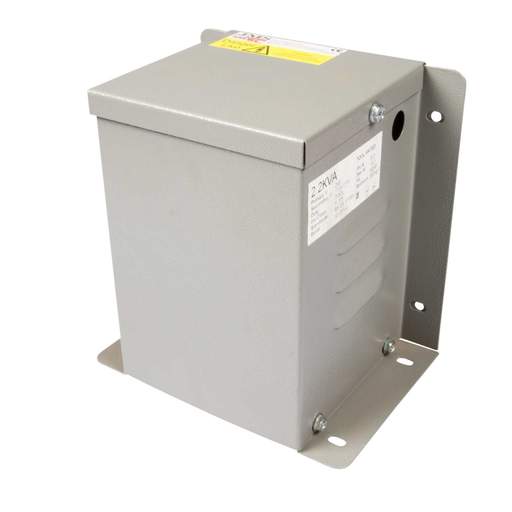

MCG 2.2kVA 230V to 110V Wall / Floor Mounted Transformer
Part Code: E2200WM
Stock Code: 0055-6921
MCG 2.2kVA 230V to 110V Wall / Floor Mounted Transformer
Part Code: E2200WM
Stock Code: 0055-6921
Features
- 230V input to 110V output
- Unit is to be hard wired in and out
- Floor or wall mountable enclosure, IP44 rated
- Made from zinc plated sheet steel then powder coated with polyester paint
- 20mm cable gland hole each side
- Ventilated for transformer cooling
- Internal earth bonding stud
- Detachable lid and base
- Fitted with a manually resettable heat cut out
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Compliance
- CE
- Depth
- 150mm
- Dimensions
- (H)220 mm x (W)225 mm x (D)150 mm
- Finish
- Powder Coated
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 220mm
- Material
- Sheet Steel
- Mounting
- Wall / Floor
- Packaging Types
- Each
- Safety Cut Out
- Yes
- Standards
- BS EN 61558
- Unspsc V18
- 39121001
- Unspsc V24
- 39121001
- Va Rating
- 2200VA
- Voltage Input
- 230V
- Voltage Output
- 110V
- Weight
- 23.50000kg
- Width
- 225mm
