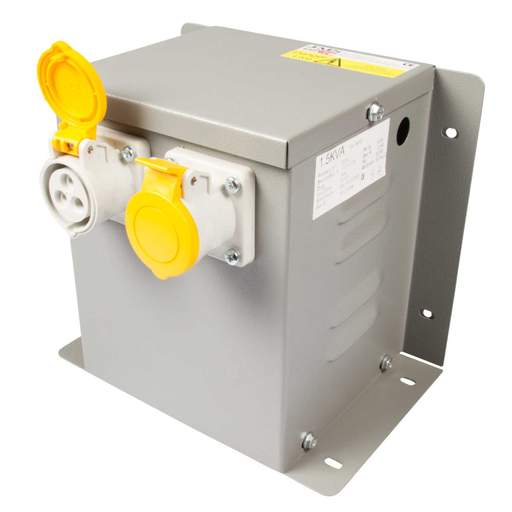

MCG 1.5kVA 230V to 110V Wall / Floor Mounted Transformer with 2 x 16A Sockets
Part Code: E1502WM
Stock Code: 0055-6918
MCG 1.5kVA 230V to 110V Wall / Floor Mounted Transformer with 2 x 16A Sockets
Part Code: E1502WM
Stock Code: 0055-6918
Features
- 230V input to 110V output
- 2 x 16A 110V 2P+E IP44 panel mounted sockets
- Floor or wall mountable enclosure, IP44 rated
- Made from zinc plated sheet steel then powder coated with polyester paint
- 20mm cable gland hole each side
- Ventilated for transformer cooling
- Internal earth bonding stud
- Detachable lid and base
- Fitted with a manually resettable heat cut out
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Compliance
- CE
- Depth
- 210mm
- Dimensions
- (H)220 mm x (W)225 mm x (D)210 mm
- Finish
- Powder Coated
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 220mm
- Material
- Sheet Steel
- Mounting
- Wall / Floor
- Number of Outlets
- 2
- Packaging Types
- Each
- Safety Cut Out
- Yes
- Standards
- BS EN 61558, BS EN 60309
- Unspsc V18
- 39121001
- Unspsc V24
- 39121001
- Va Rating
- 1500VA
- Voltage Input
- 230V
- Voltage Output
- 110V
- Weight
- 10.00000kg
- Width
- 225mm
